“Super Ultra Linear”

































Amplifier  Superlative



SOWTER TYPE U066

MULTI-PURPOSE PUSH-PULL EXPERIMENTERS TRANSFORMER

“SUPER-ULTRA-LINEAR” CONFIGURATION

PACKAGE SIZE

L

STYLE OPTIONS

S, T, O

APPLICATION: For experimenters who wish to try valves such as 5881, EL34, 6550, 6L6, KT66 in various push-pull configurations such as triode, tetrode or pentode mode with a pair of valves or two pairs in parallel with or without cathode feedback. The primary may be connected to give an RLa-a of approximately 10K or 5k0 ohms and the secondary may be configured to give 16/8/4 ohms. If an 8 ohm speaker is used with the secondary configured to 16 ohms the primary reflected load will be 5k0 or 2k5 ohms. May be used for a range of high quality designs without any performance compromise or for experiments to study the effects of different circuit configurations. Please note the reflected impedances do not take account of the dc resistance of the windings.

FEATURES: High grade low loss grain oriented silicon iron core for minimal distortion. 14 winding sections which can be configured so that all the sections are always in use to ensure minimal leakage inductance so the transformer has exceptional bandwidth and transient response.

There are 4 separate identical secondary windings which can be configured for 4/8/16 ohms speakers. Please note the actual secondary impedances are 4/9/16 ohms).

Cathode winding for "super ultra linear" connection as described by Williamson and Walker AES Journal April 1954 Volume 2 Number 2. Screen taps or even a separate screen feedback winding allowing the screen to be returned to a different voltage may be configured for experiments.

BANDWIDTH: Depends on configuration but typically - 3dB at 10Hz and 40KHz. Best response is

 obtained with triode connection and/or with cathode feedback.

POWER at 25 Hz

20 Watts minimum

ANODE CURRENT max per side

150 mA

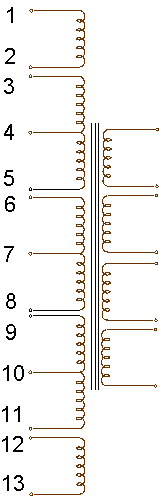

8774 connections



RLa-a = 10K

RLa-a = 5K

ANODES

1,13

3,11

CATHODES (optional)

6,8

6,8

HT+

5

5

JOIN

5+9, 2+3, 11+12

5+9, 1+3, 2+4, 11+13, 10+12

33% SCREEN TAPS

4,10



66% SCREEN TAPS

2,.12



50% SCREEN TAPS



4,10

Primary inductance (typical)

70H

30H

Ratio Tertiary/Primary

6%

12%

Primary resistance (typical)

160 ohms

120 Ohms

E A Sowter Ltd The Boatyard, Cullingham Road IPSWICH IP1 2EG England

Tel: +44(0)1473 252794
Fax: +44(0)1473 236188

Acima Parâmetros e dados de utilização.



Abaixo dados construtivos.





Sowter Type U66

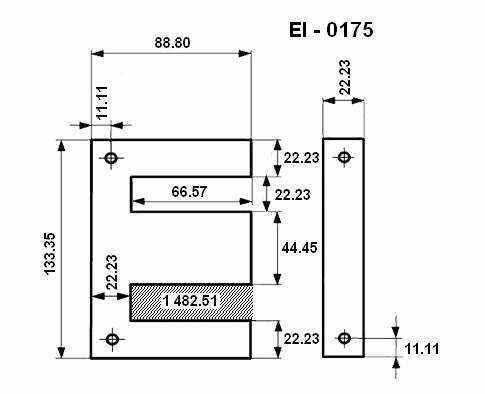

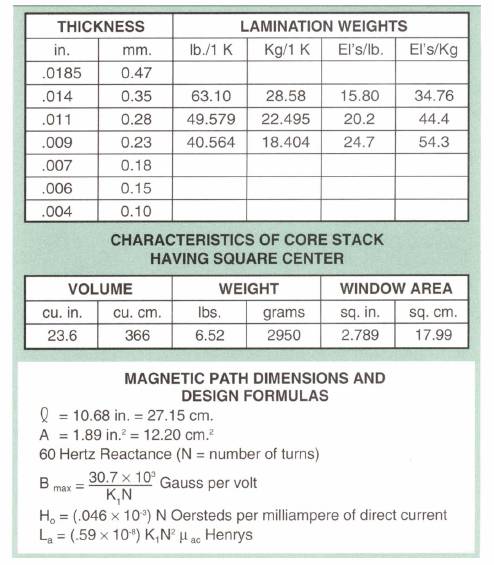

EI 0175 janela com 1480 mm2

Ferro laminado: Orthosil (M6) de grão orientado 0,014” de espessura.

Empilhamento 35mm entrecruzado.

Primário total 10.000 ohm 4500 espiras. 2 pacotes de enrolamento trifilar = 750 espiras fio 30

Secundário 4 conjuntos 1 ohm em 45 espiras em enrolamento tetrafilar =180 espiras fio 21

Terciário total 600 ohm 1120 espiras em enrolamento bifilar =560 espiras fio 27

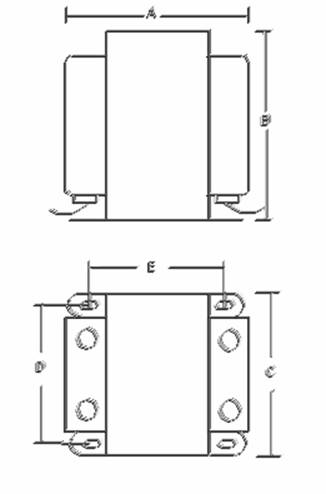

SL Presentation

A

B

C

D

E

86

117

111

96

56

Nota: dimensões externas próximas ao Quad II



As setas indicam a orientação do grão.

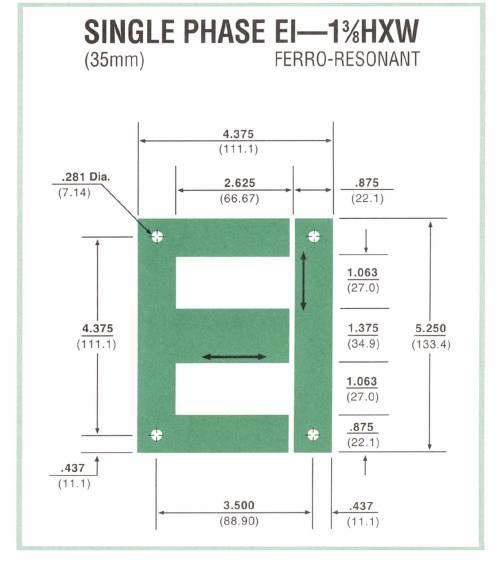

Geometria da ferragem do transformador empregado

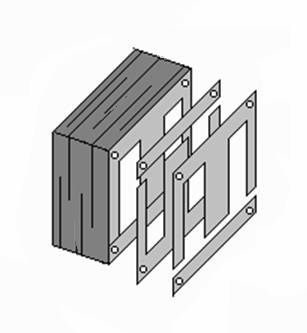

Montagem entrecruzada.

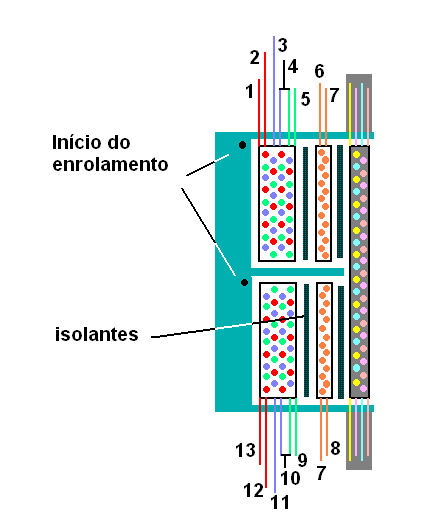

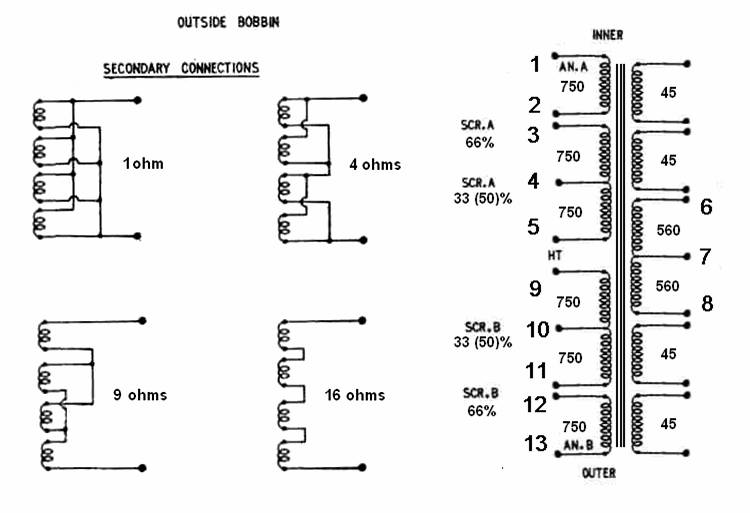

Detalhe da distribuição dos enrolamentos

1, 2, 3, 4, 5 e 13, 12, 11, 10, 9 enrolamentos trifilares.

6, 7 e 7, 8 enrolamentos simples.  Secundários: enrolamentos tetrafilares.



Aparência do enrolamento secundário tetrafilar no transformador Sowter.



Outros transformadores “S-U-L”:

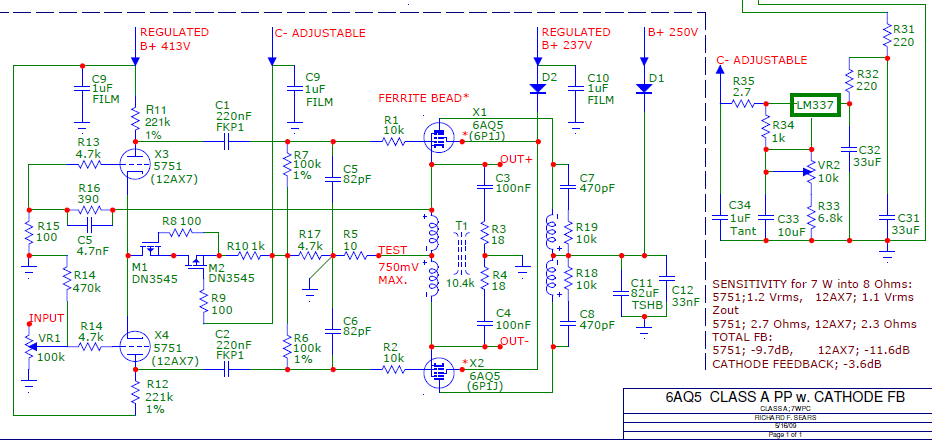

http://www.triodeguy.com/6AQ5%20Pentode%20PP.htm

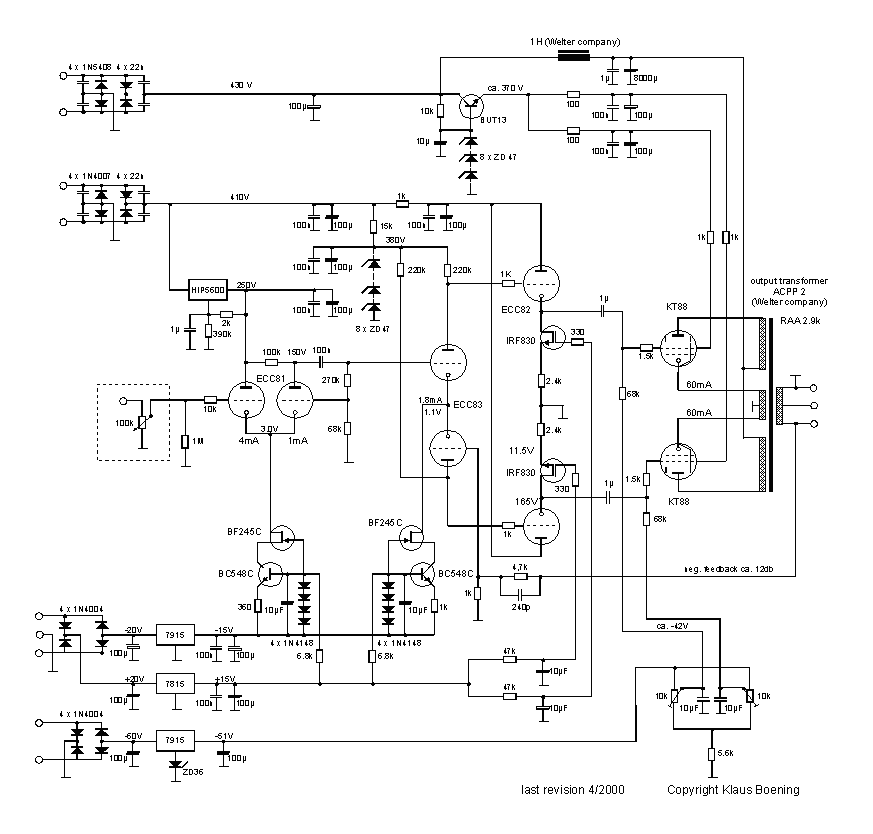

 Welter Company ACCP 2

http://www.klaus-boening.de/html/tube_amp.html



Amplimo Super Triode toroidal transformer

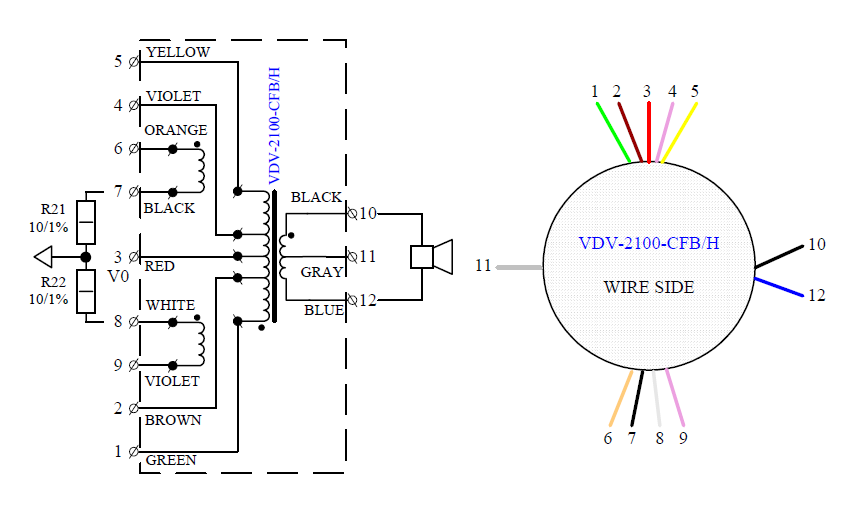

Veja O super Williamson de Menno Van der Veen  http://www.novacon.com.br/audioampl3.htm

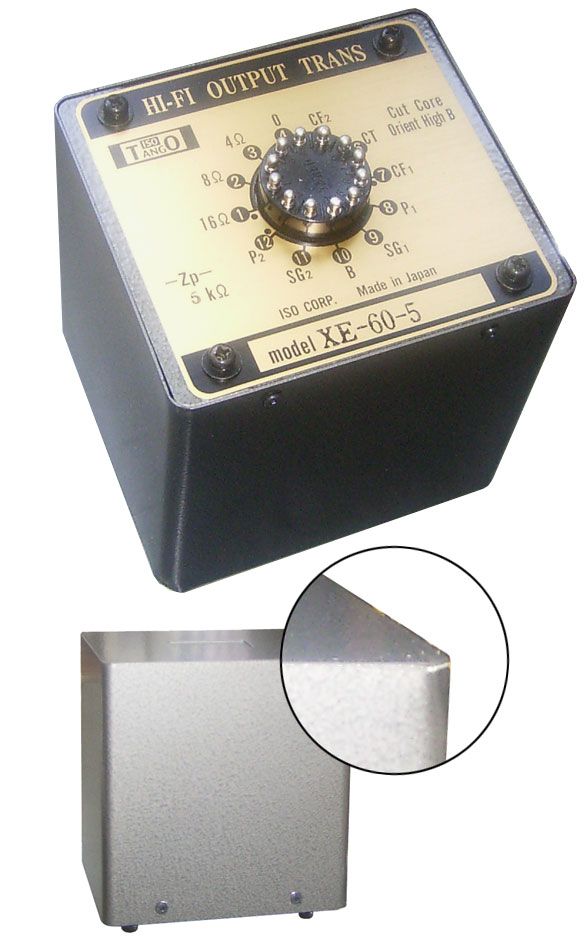

Transformador Super Ultra linear Tango:

 Veja em http://www.novacon.com.br/audiohmq1c.htm

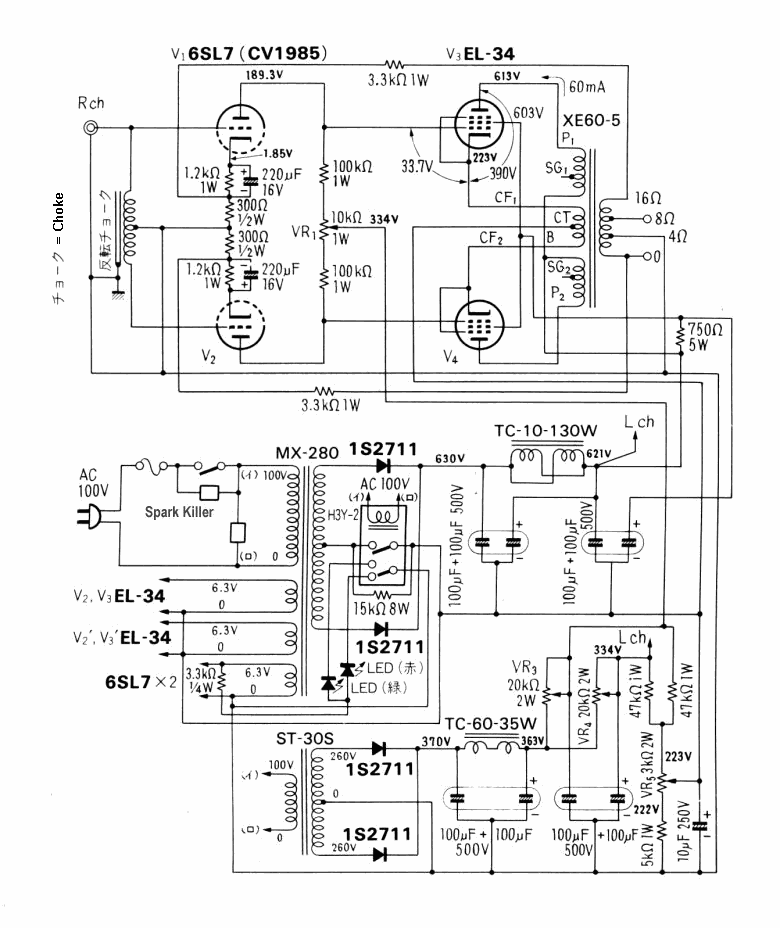

     タョーク 60.000Ohms choke







XXXXXXXXXXXX







From: Jan Erling Veiset
 Sent: 13 December 2007 09:44
 To: Brian Sowter
 Subject: Re: FW: 1036 Jan Veiset

 Hi Brian,

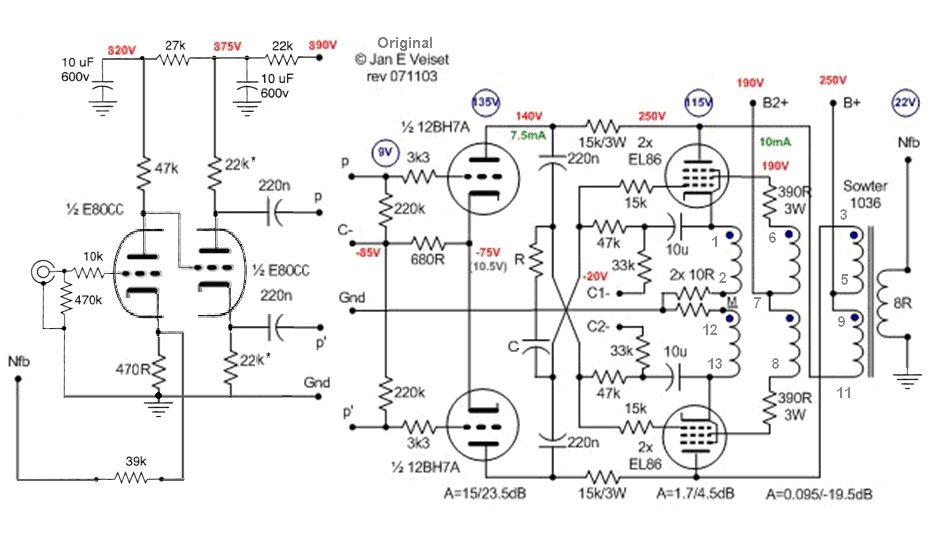

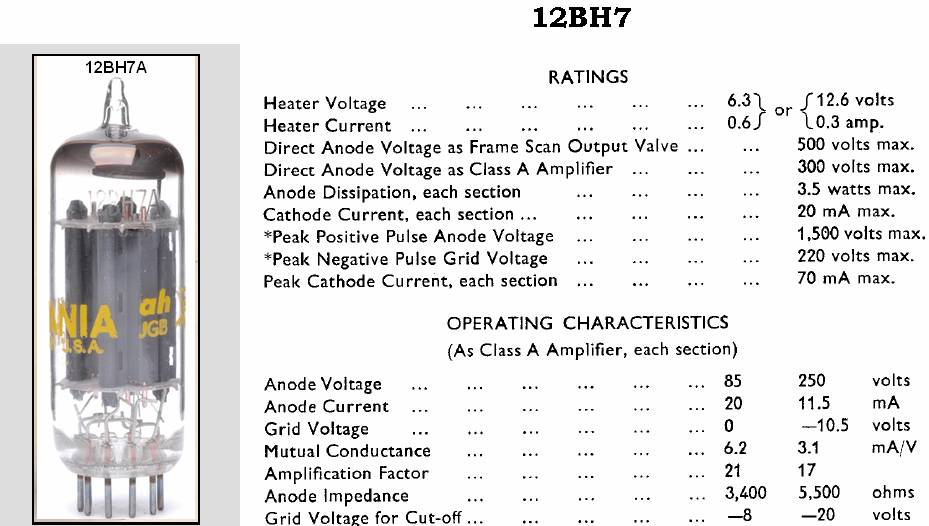

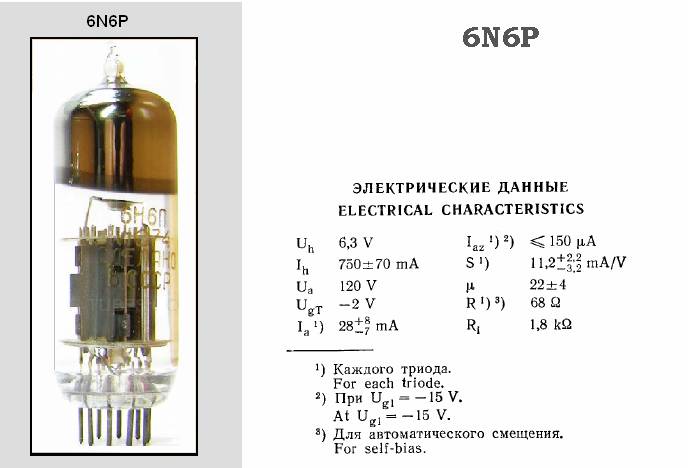

I'm now testing the unity amplifier and the trifilar transformer performs very well. The amps are basically built from the attached revision of the schematic and the front end is a common cathode + split load phase inverter based on E80CC.



Working conditions are 260V B+, 190V Bg2 (regulated) and –90V for the negative rail. The amp runs near to class B, biased with 4 x 10mA in the output stage.  Max power output was estimated to be about 30W and I measure the onset of clipping at ~15Vrms into 8.2R (~28W)



Global feedback is kept low, about 10dB, but there are no problems to apply more feedback to get even better technical results. Personally I am not a big supporter of global NFB, but used in proper amounts it does good things.



With 10dB NFB I achieved these results:

Zo : 0.8 ohm

THD: 0.6% (30Hz, 1kHz, 10kHz, 25W Po) (2nd and 3rd harmonic dominant)

Freq resp: 10Hz -100kHz (+0/-0.5dB). –3dB at 230kHz.



With feedback there was no major peaks or dips in the frequency response. There was a small, low Q peak at ~100kHz (+0.8dB) but with 24pF in parallel with the feedback resistor the response turned out to be straight as an arrow up to 100kHz.

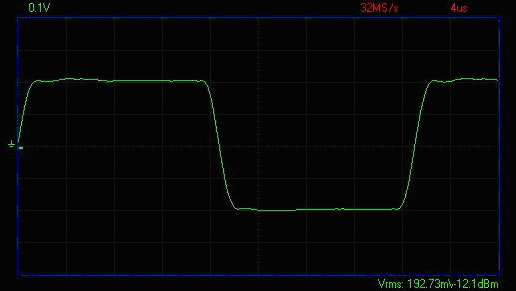

The attached square wave is 30kHz, quite astounding for a tube amp.



All in all, this project ended up with the best frequency response I ever have seen in a tube amp with output transformer. Thank you for superb transformers!



Best regards,

Jan E Veiset

Norway





P.S. Sem alterações de circuito a EL86 poderá ser substituída pela EL36 dando 50Watts de saída
