Circuits from magazine "Audio Engineering"  II

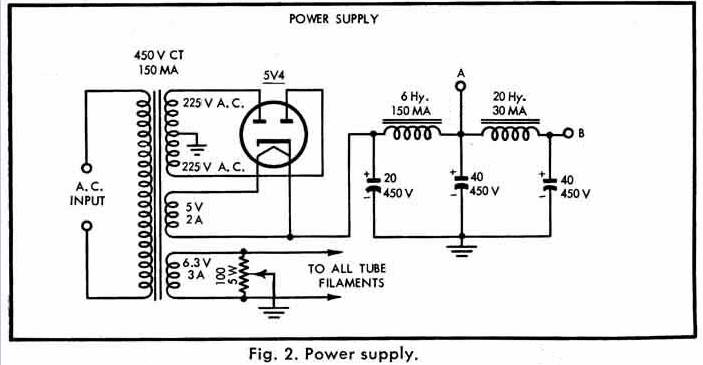

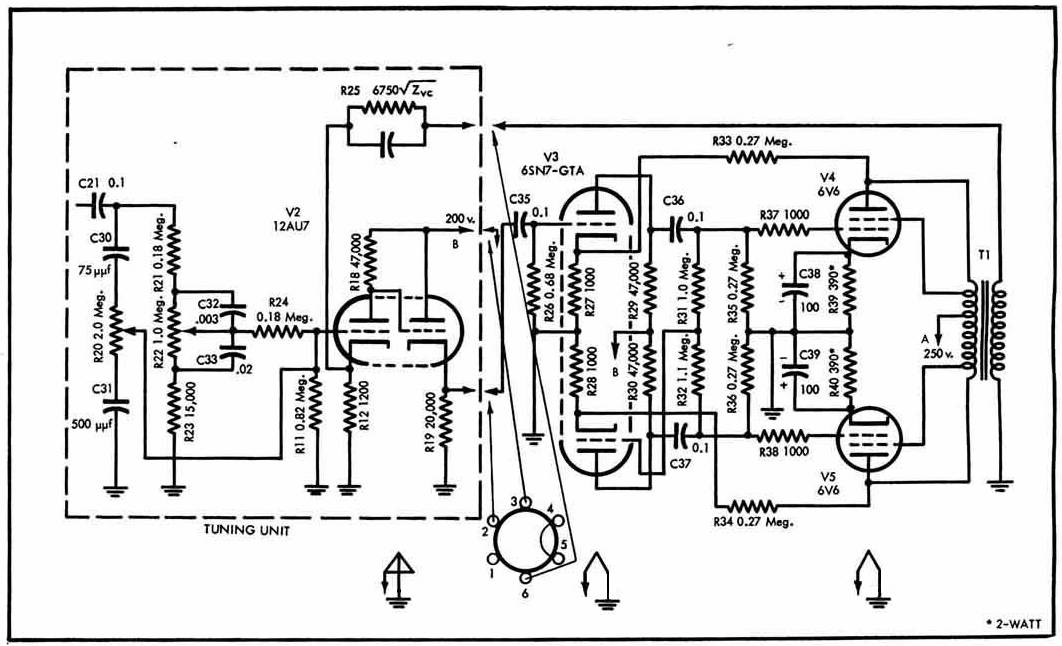

Power amplifier with tone control

Xxxxxxxxxxxxxxxxxxxxx

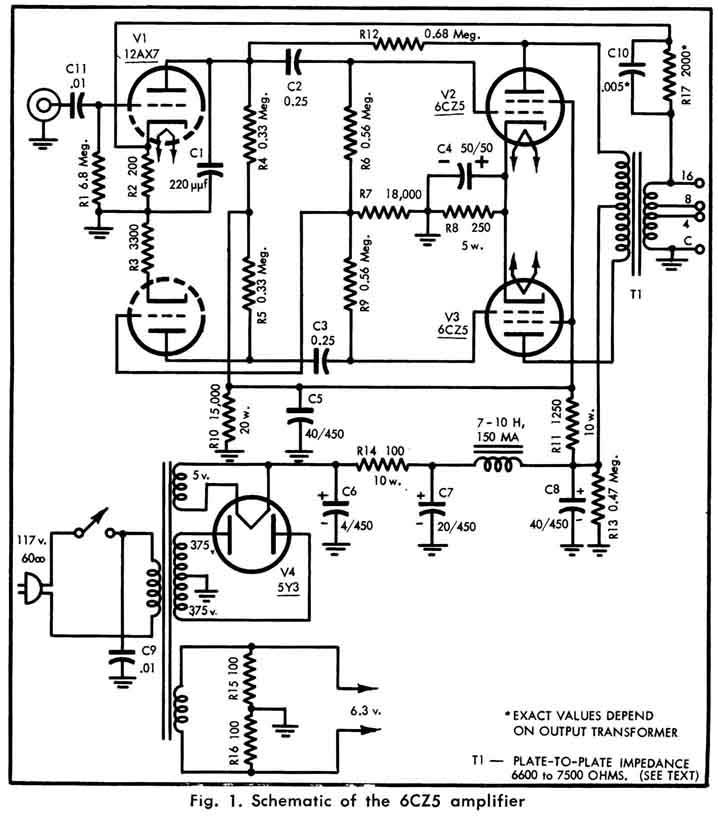

Simplified Amplifier Using 6CZ5 Tube (6V6 similar)

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/6CZ5_PP.jpg

xxxxxxxxxxxxxxxxxxxxx

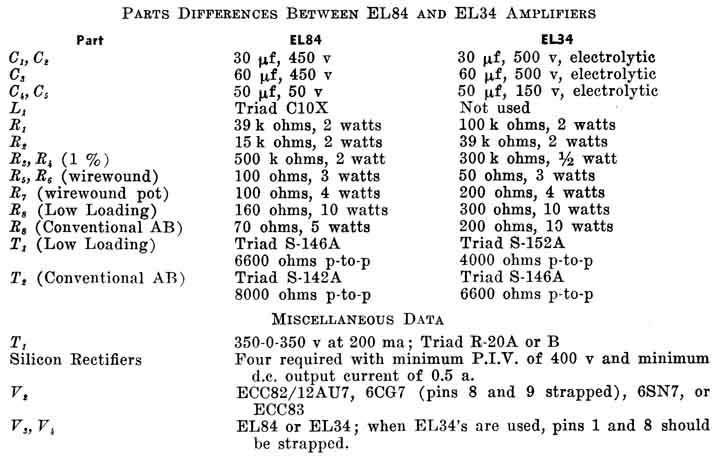

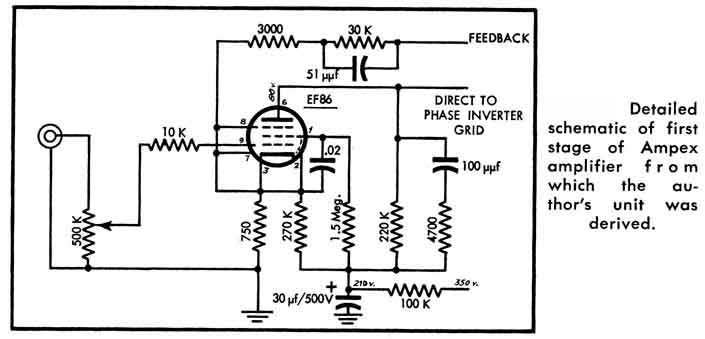

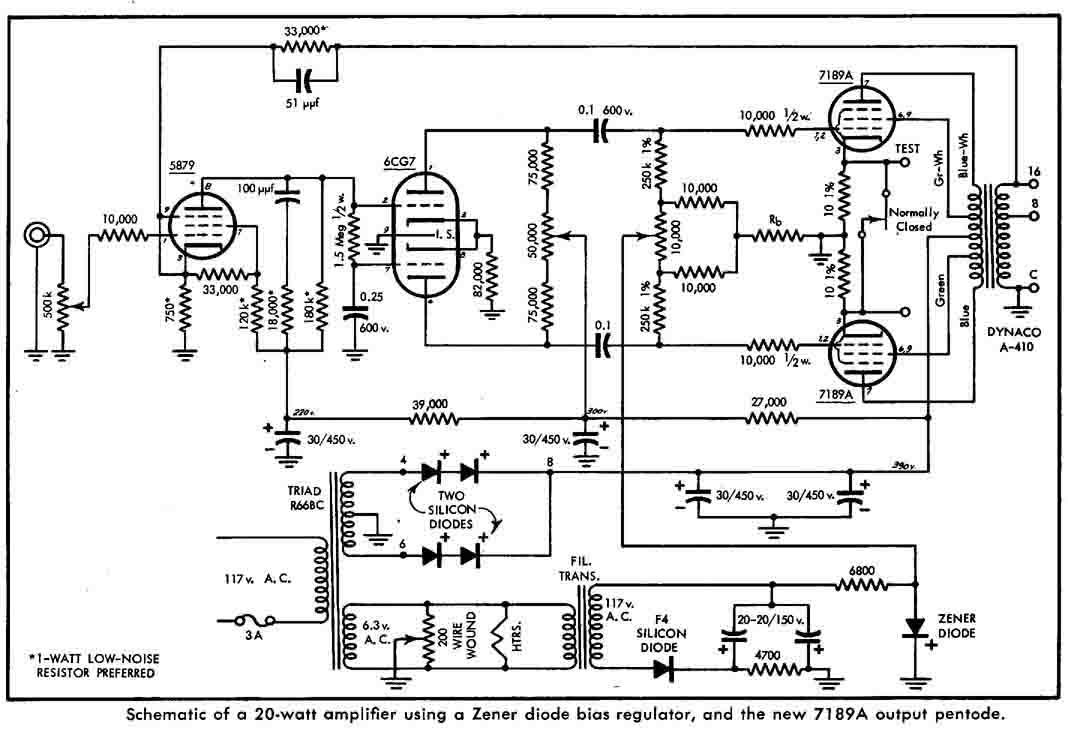

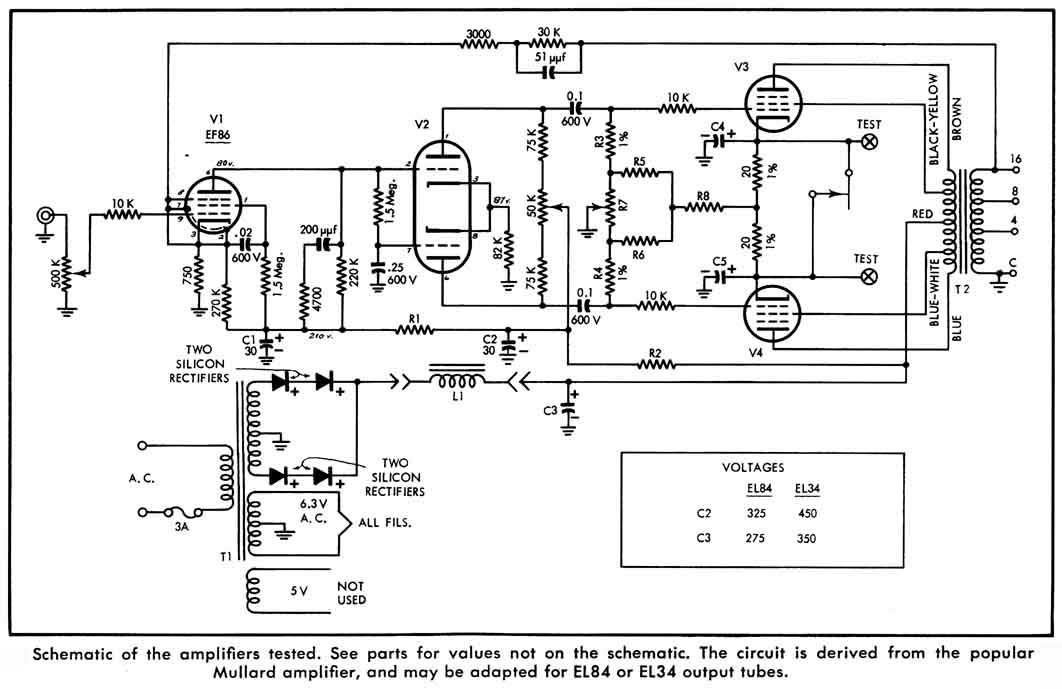

Three Mullard Derived Amplifiers

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/EL34_EL84_Mullard/EL34_EL84_Mullard_PP1.jpg

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/EL34_EL84_Mullard/EL34_EL84_Mullard_PP2.jpg

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/7189APP.jpg

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/EL34_6CG7/EL34_6CG7_5879_PP.jpg

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/EL34_6CG7/EF86_Ampex_FirstStage.jpg

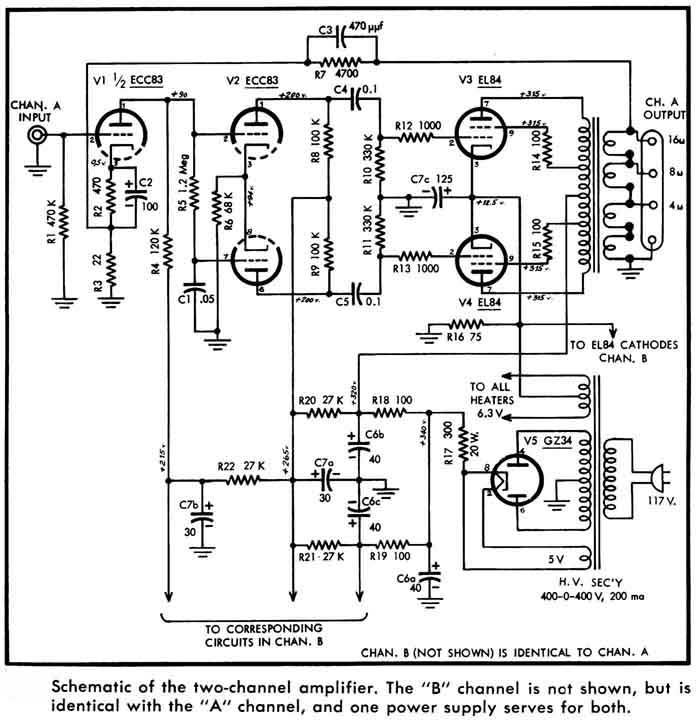

Miniature Mullard Version Amplifier

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/EL84PP_ECC83_2.jpg

xxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxx



Radio Television News
