Circuits from magazine "Audio Engineering"  IIi

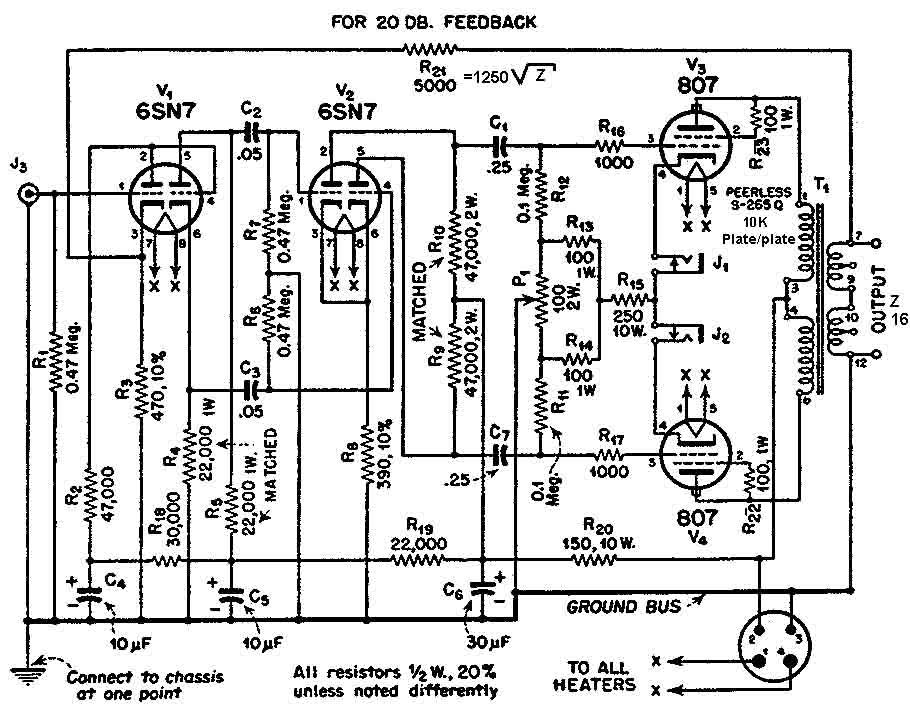

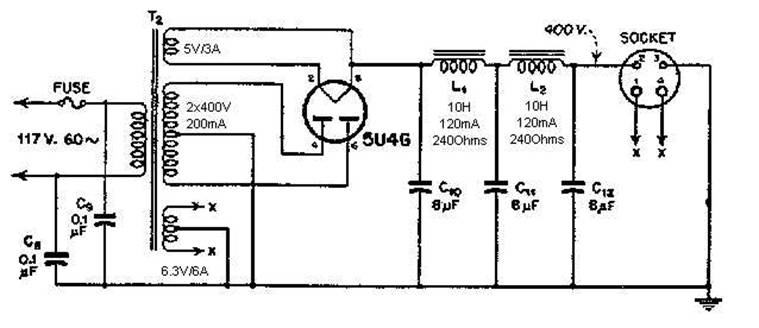

Williamsom Classic American Version

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/807PP_3/807PP_6SN7.jpg

http://oestex.com/tubes/musn-ps.jpg

Williamsom Classic Improved Ultralinear British GEC Version

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/KT88_PP.jpg

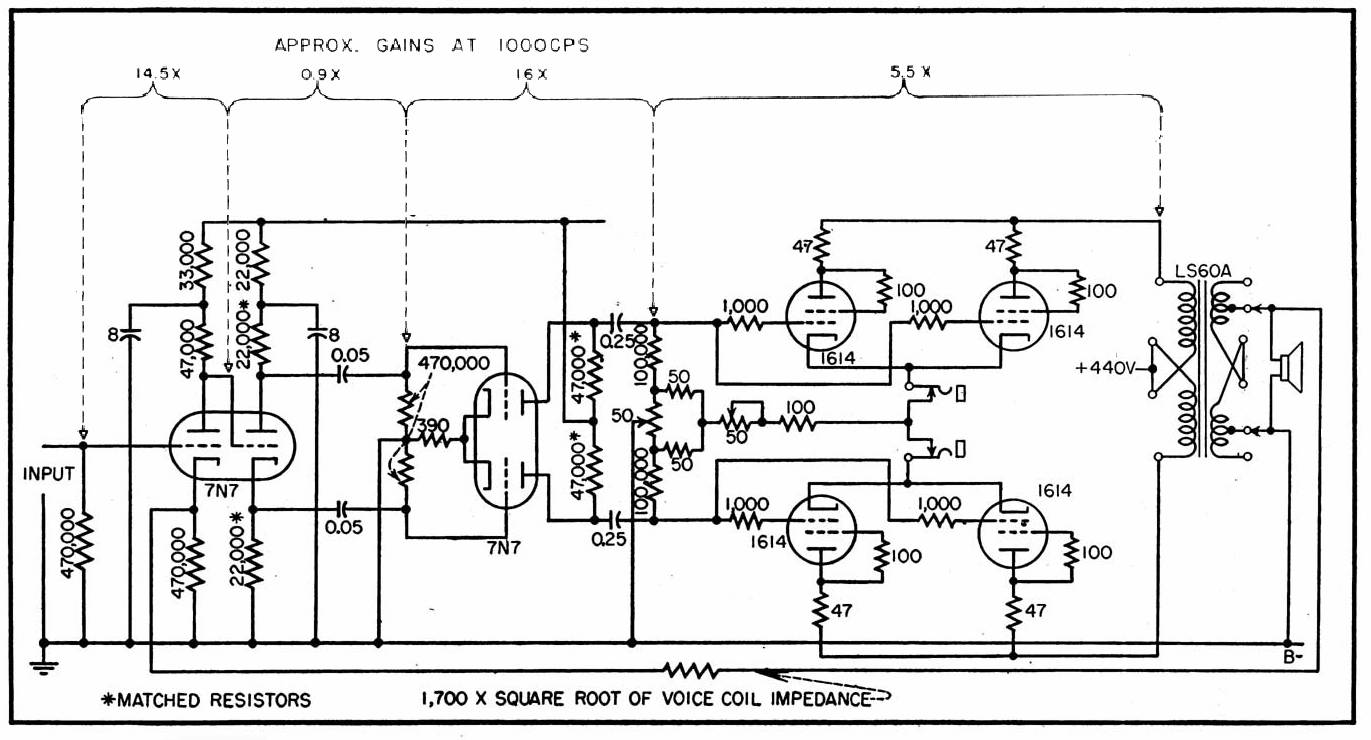

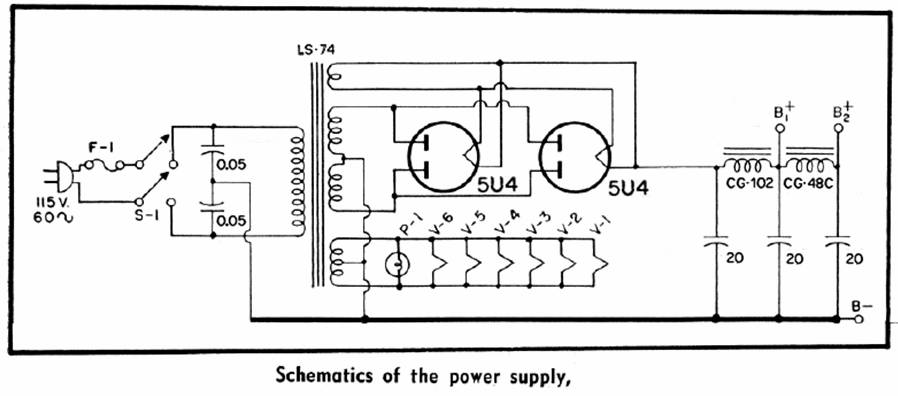

UTC 20 W triode mode



xxxxxxxxxxxxxxxxxxxxx

Two Channel Amplifier

Version 1

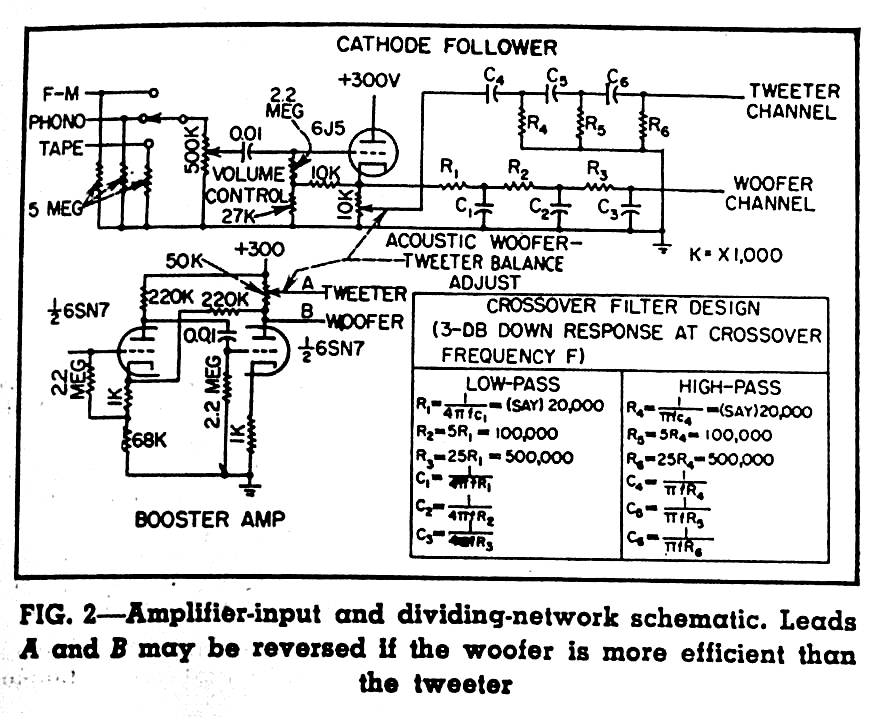

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/6L6PP2WAY/6L6PP_2WAY_input_stage.jpg

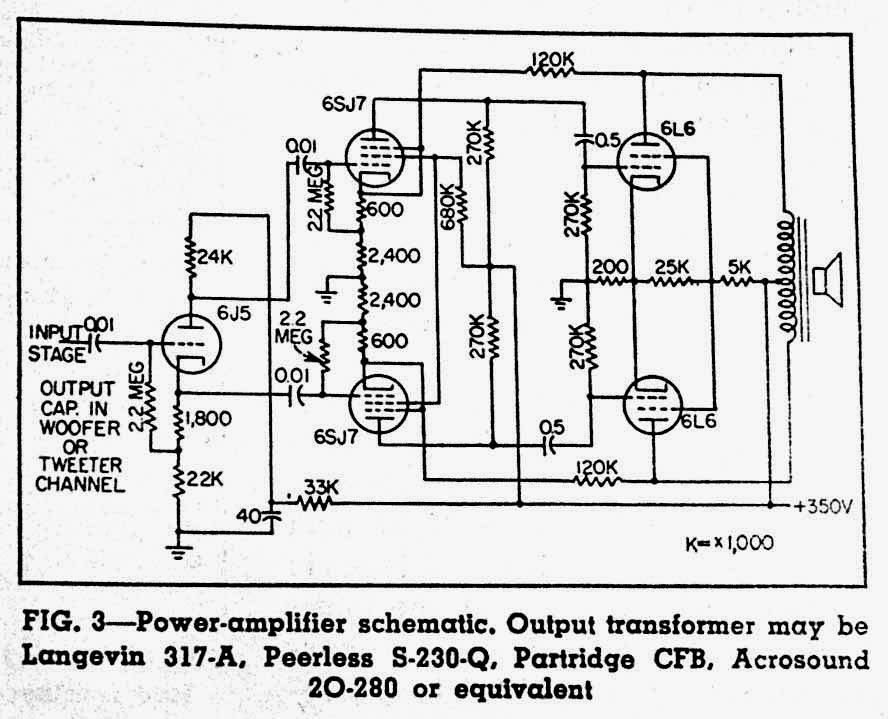

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/6L6PP2WAY/6L6PP_2WAY_6SJ7_6J5.jpg

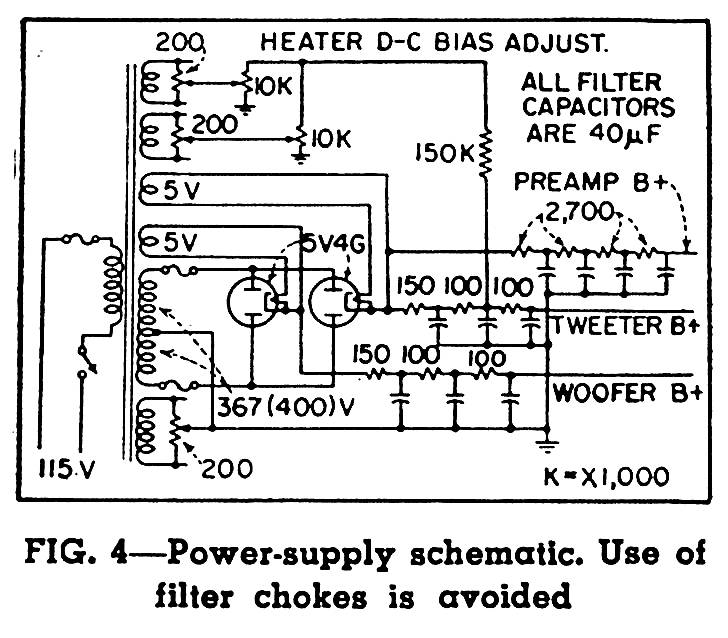

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/6L6PP2WAY/6L6PP_2WAY_psu.jpg



Version 2

http://www.audiofanatic.it/Schemi/Tipo/Valvole/finali/pic_finali_PP/KT66_EL34_TwoWayAmpli_PP.jpg

xxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxx

xxxxxxxxxxxxxxxxxxxxx



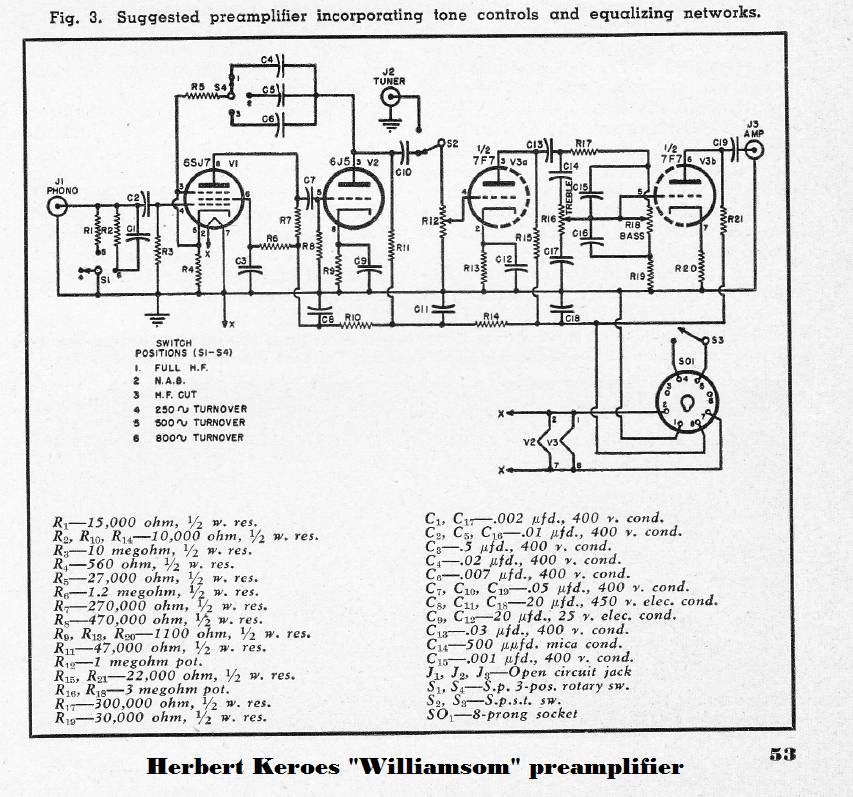

Radio Television News
