Gabinete Lowther Imperator.

TP1 Imperator

Paul Gustav Adoph Helmuth Voigt.

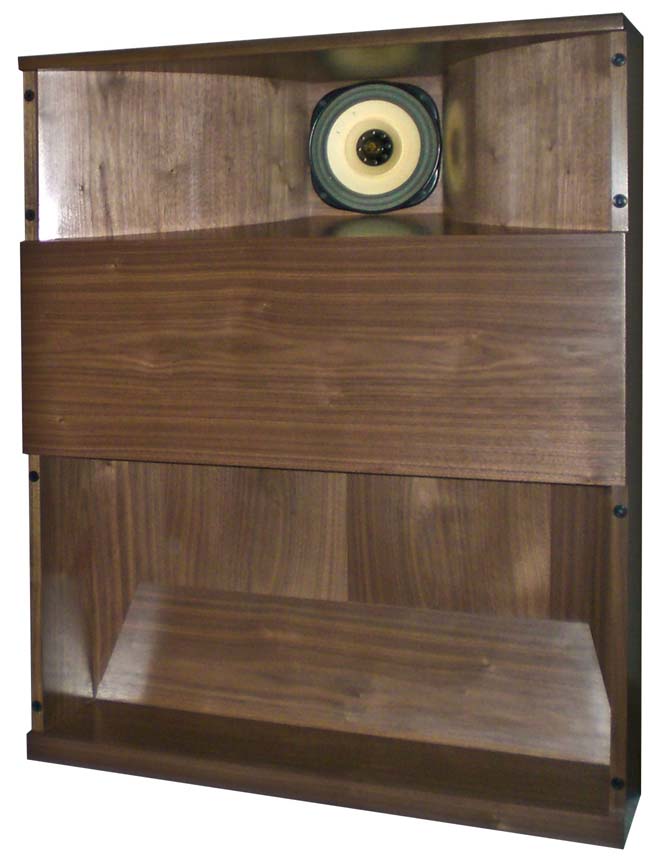

Gabinete comercial

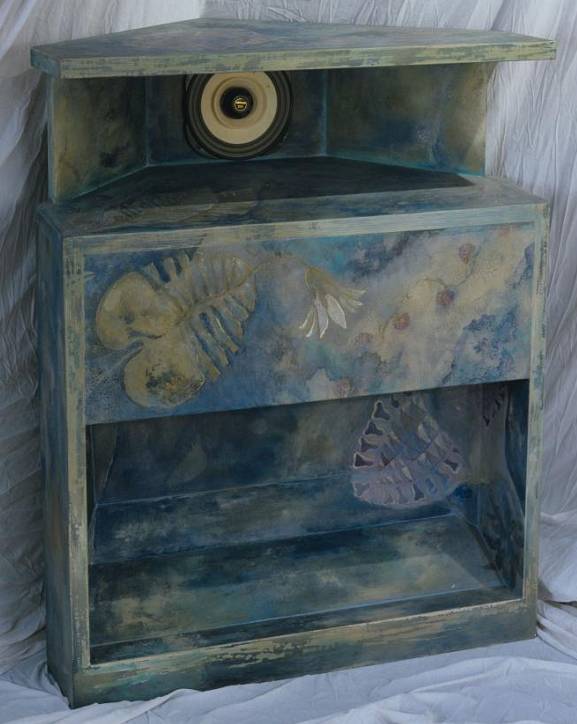

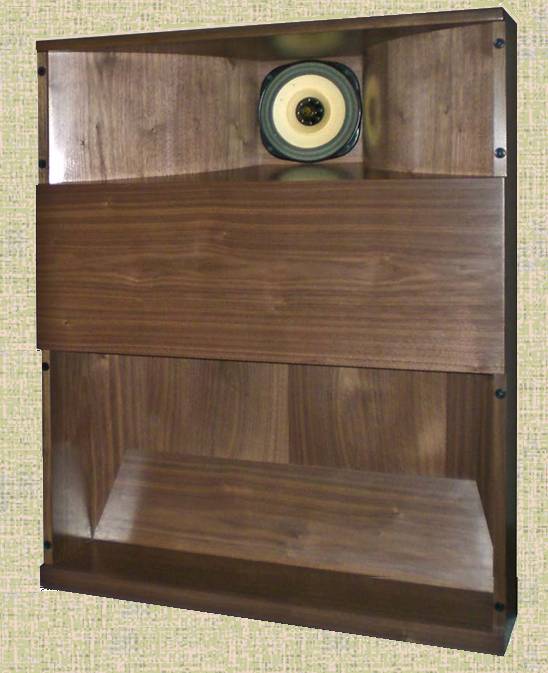

Gabinete de constru��o dom�stica

Outros detalhes construtivos em:

http://sites.google.com/site/lowtherhorns/

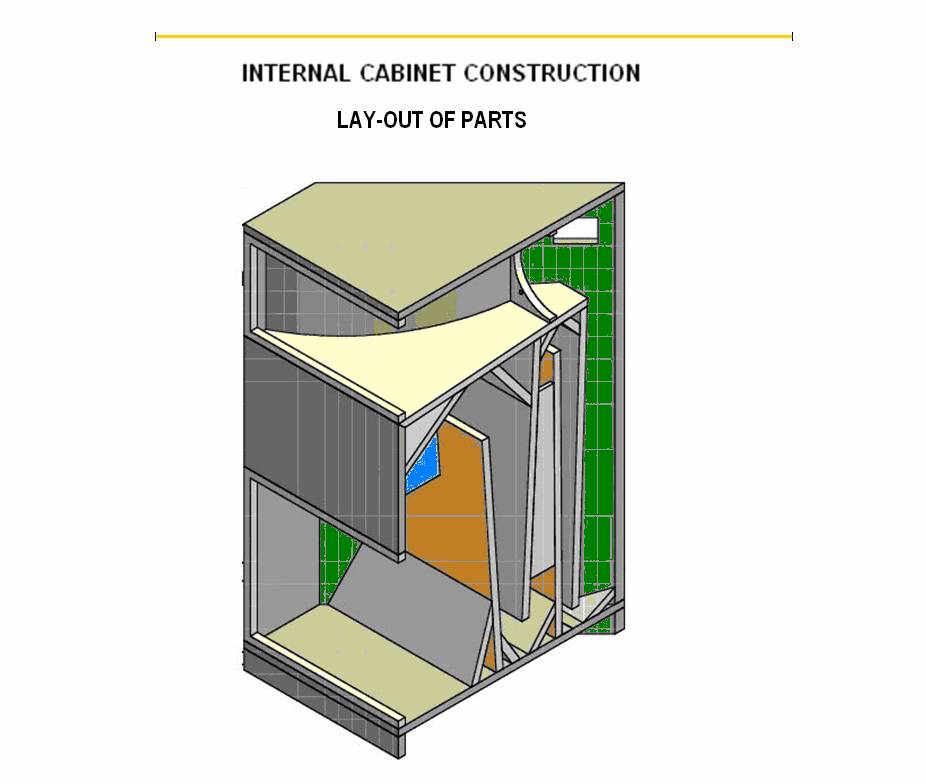

Disposi��o dos componentes internos.

Aspecto da corneta Imperator.

As tr�s etapas iniciais

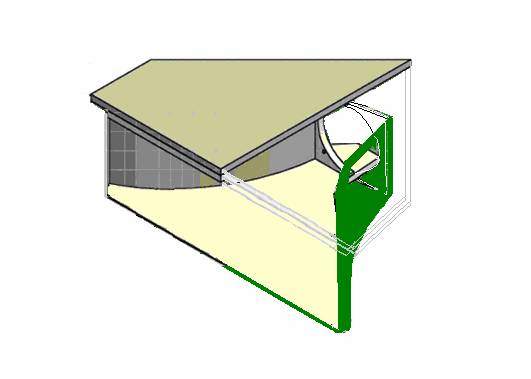

Corneta frontal

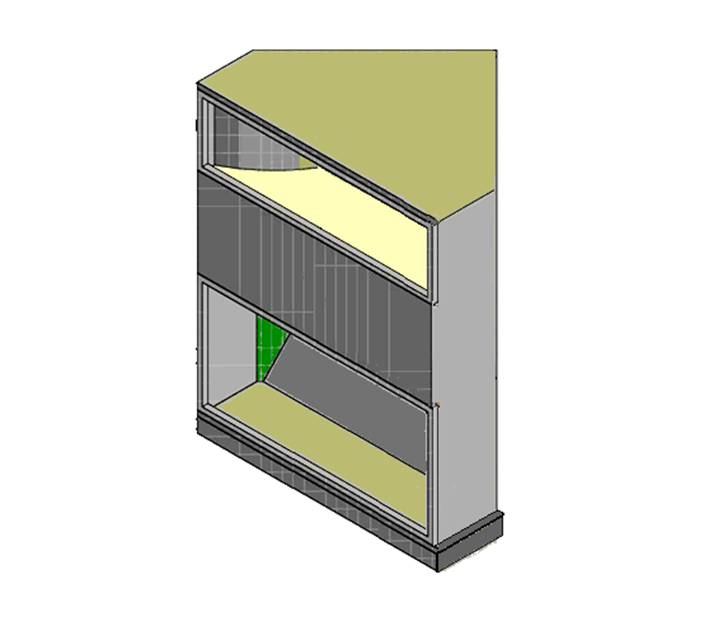

Gabinete- vis�o estrutural

Gabinete Primeira estrutura Pe�as A1, A2, B1, B2, C1, C2, F1, F2, F2, F4 e F5.

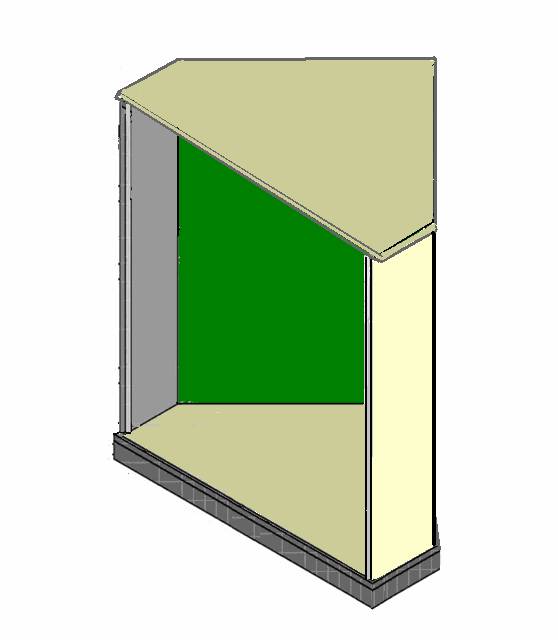

Primeira etapa da montagem. Base para coloca��o dos demais componentes.

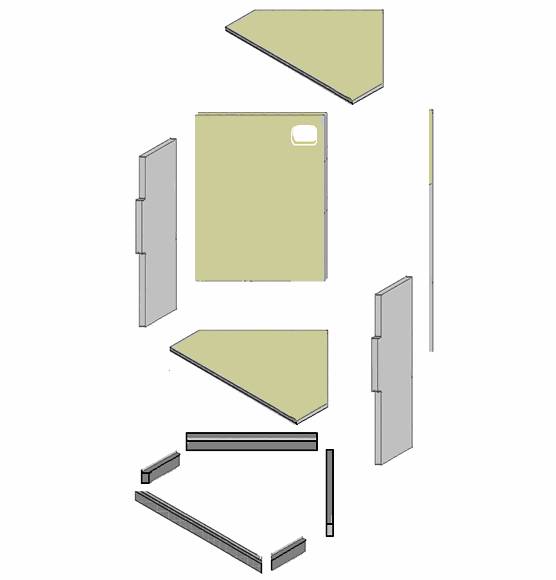

Explodido da estrutura b�sica (primeira etapa da montagem).

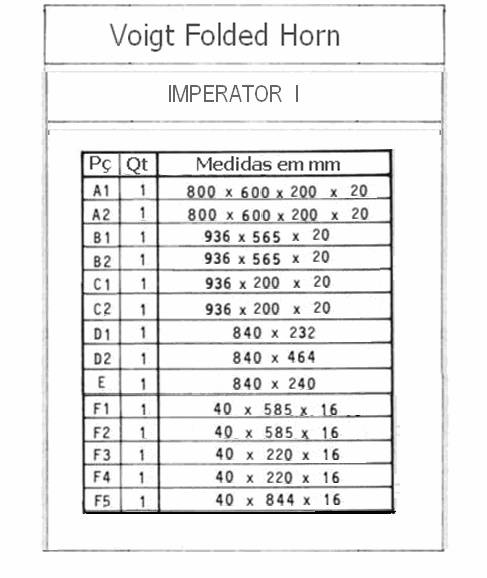

Medidas das pe�as externas.

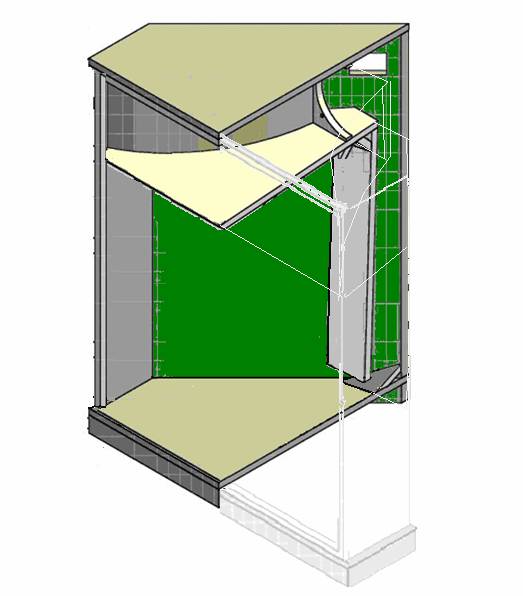

Gabinete com corneta frontal coloca��o das pe�as 1, 2, 6, 10, 15, 18 e 19

Explodido da figura anterior

Primeiros elementos internos a serem posicionados

Seq��ncia de montagem:

Primeira fase: Estrutura:

 Caixa externa: A1, B1, C1, - A2, B2, C2.

E p�s  F1, F2, F3, F4, F5.

Segunda fase: Coloca��o dos elementos internos:

Corneta frontal:  Pe�a 1,  Pe�a 2  as Seis Pe�as 19 e as Duas Pe�as 18

Corneta traseira: Primeira seq��ncia: Pe�a 5, Pe�a 10, Pe�a 6, Pe�a 5.

Segunda seq��ncia: Pe�a 14, Pe�a 9, Pe�a 13.

Terceira seq��ncia: Pe�a 16, Pe�a 8, Pe�a 4.

Quarta seq��ncia: Pe�a 12, Pe�a 7,  Duas Pe�as 17 e Pe�a 3.

Fechamento: Moldura D1,  Painel E,  Moldura D2.

xxxxxxxxxxxxxxxxx

Nota 1:

As pe�as em Laminado tipo Eucatex biplacado devem ser fixadas atrav�s de pequenas cantoneiras, coladas no corpo principal e calafetadas com silicone nos cantos, para que n�o haja aberturas em seu trajeto.

Nota 2:

 Todas as pe�as com linha dupla correspondem a chanfro de 45� para melhor ajuste no corpo principal.

xxxxxxxxxxxxxxxxx

Codifica��o dos elementos.

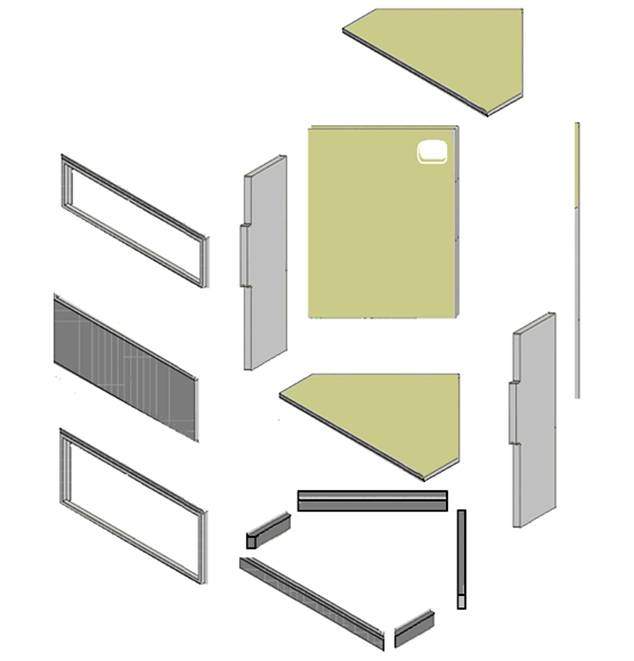

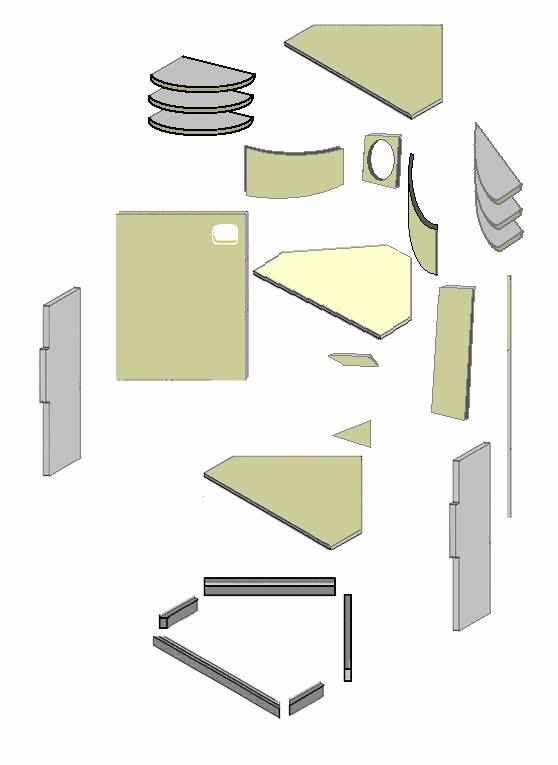

Explodido com visualiza��o da parte externa.

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

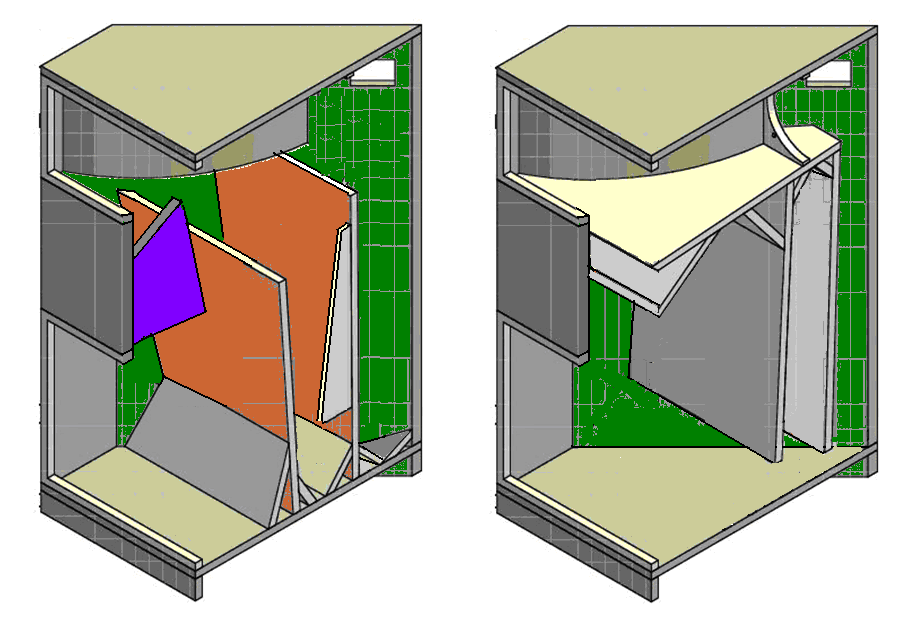

Visualiza��o da disposi��o dos defletores inferiores (esq.) e defletores superiores (dir.).

Defletores= Paredes + Conformadores

Disposi��o dos defletores inferiores (esq.) e defletores superiores (dir.).

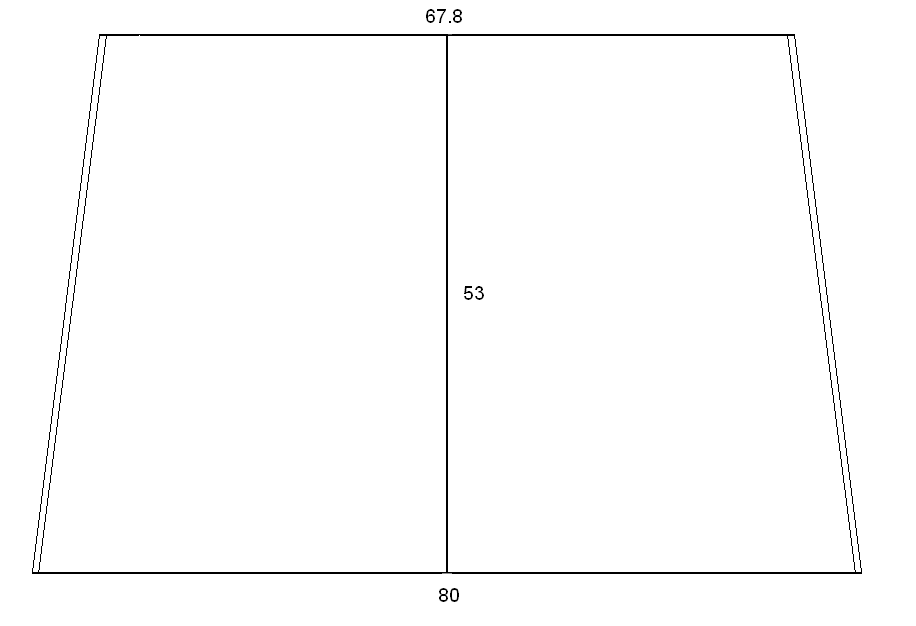

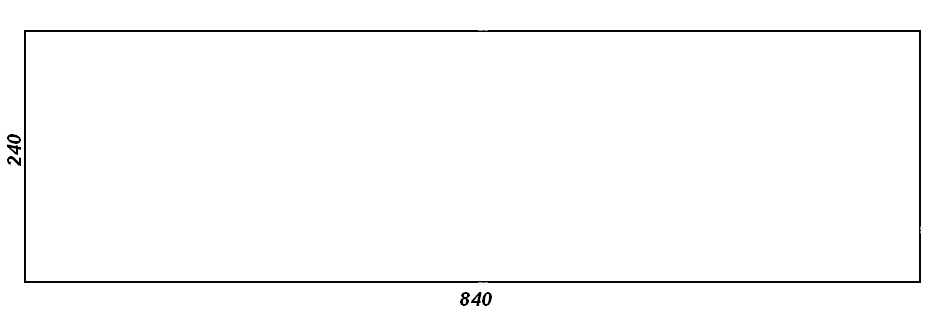

Detalhes m�tricos dos elementos construtivos:

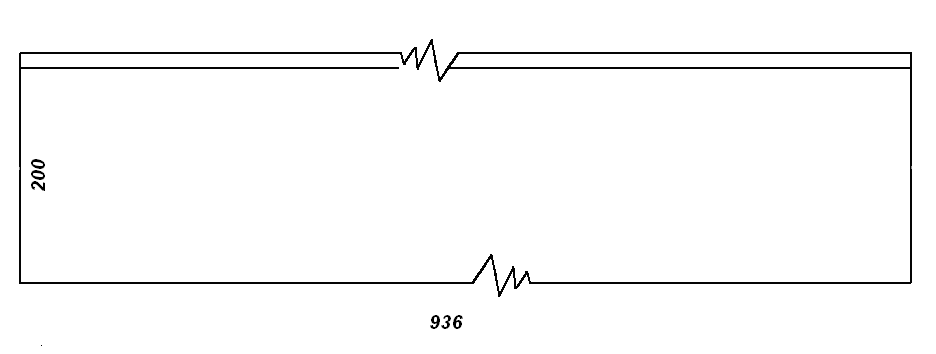

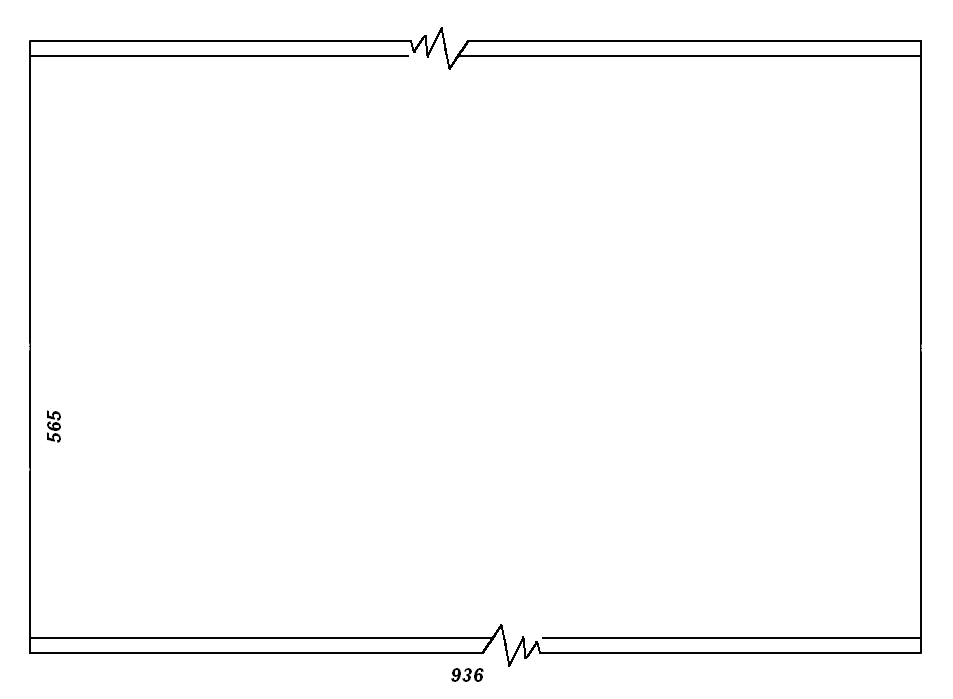

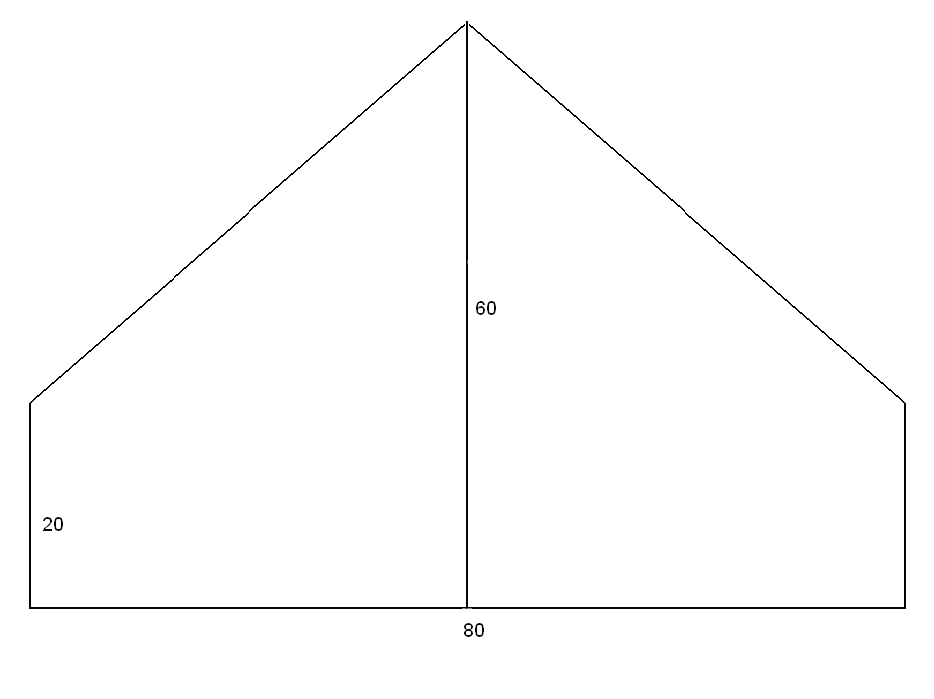

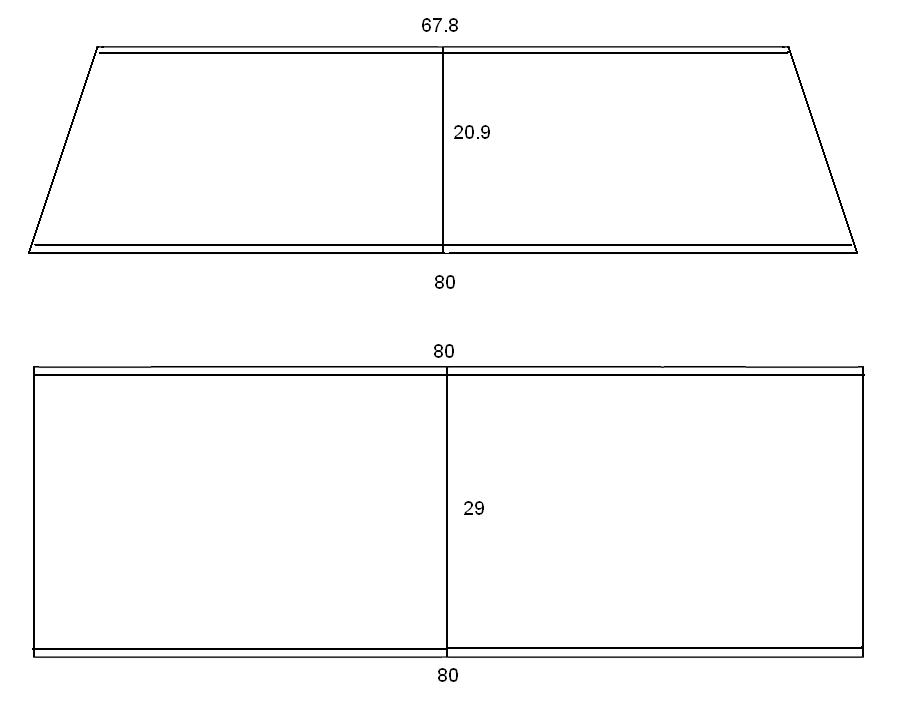

Duas Unidades (Pe�as A1 e A2)

Duas Unidades (Pe�as B1 e B2)

Duas Unidades (Pe�as C1 e C2)

Uma Unidade (Pe�a D1)

Uma Unidade (Pe�a D2)

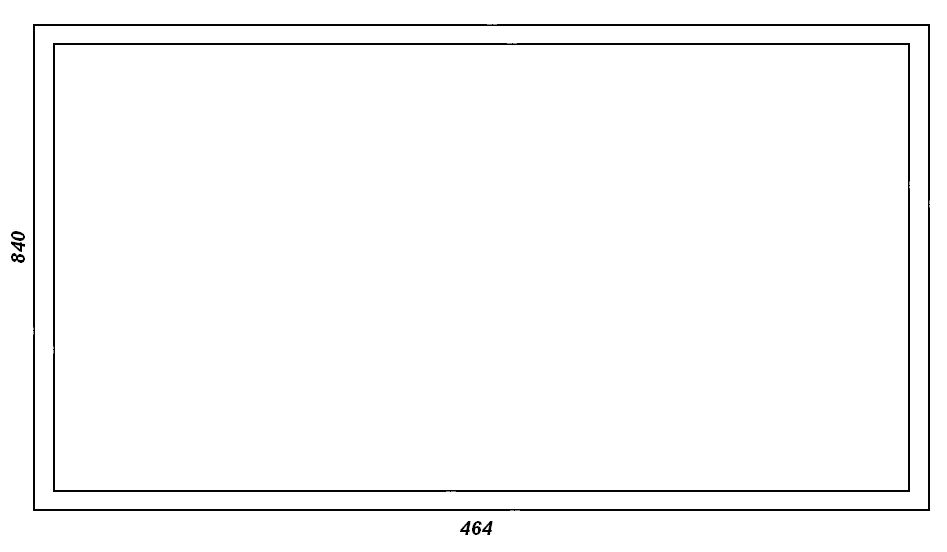

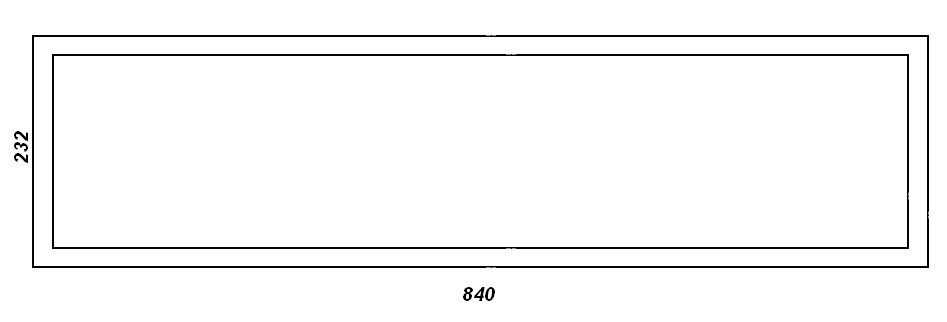

Uma Unidade (Pe�a E)

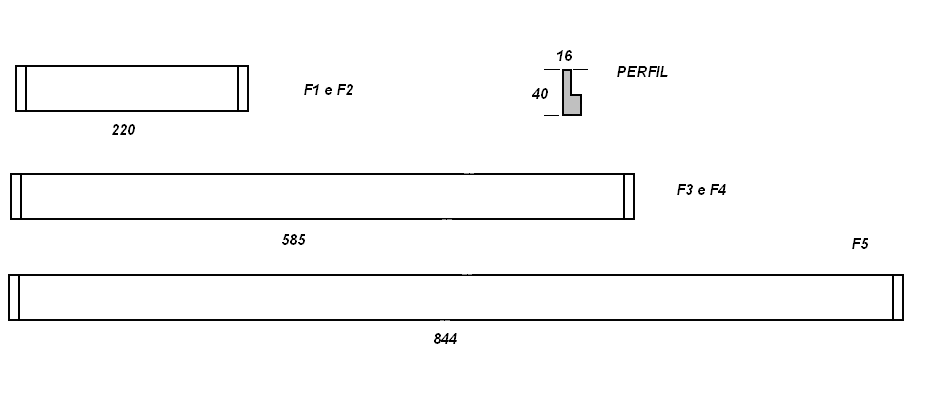

Pe�as F (1 a 5)

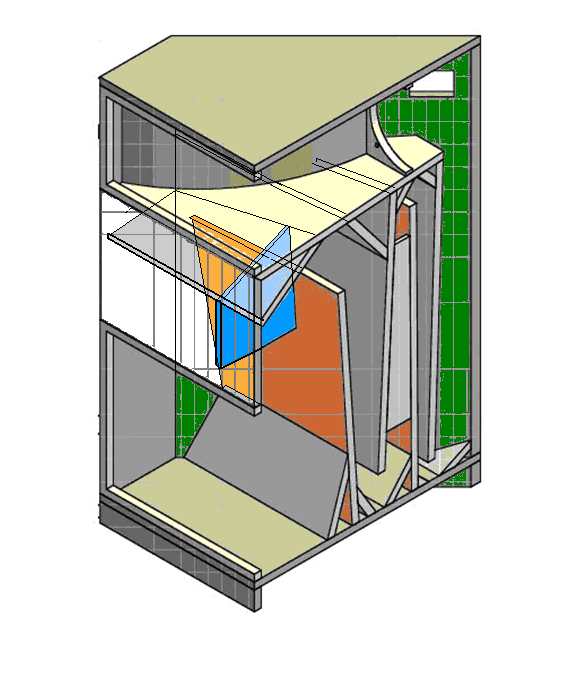

Vista interna em corte com partes internas codificadas.

Sa�da anterior=radia��o direta de m�dios e agudos.

Sa�da posterior =Carga de corneta dobrada para Graves.

Montagem da  corneta traseira 1

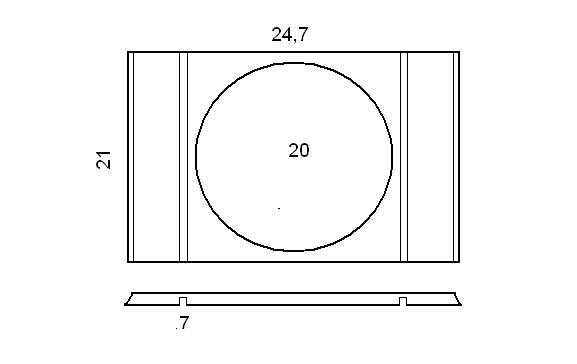

(Pe�a n� 1)  Uma Unidade Espessura= 20mm

(Pe�a n� 2)

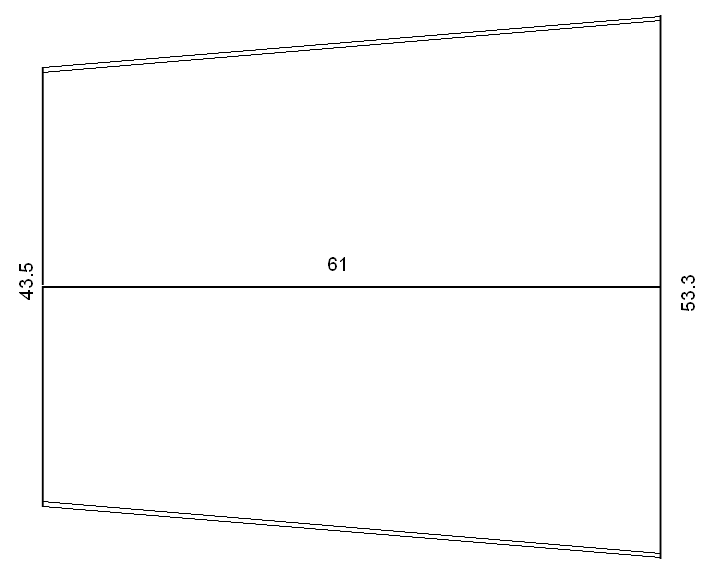

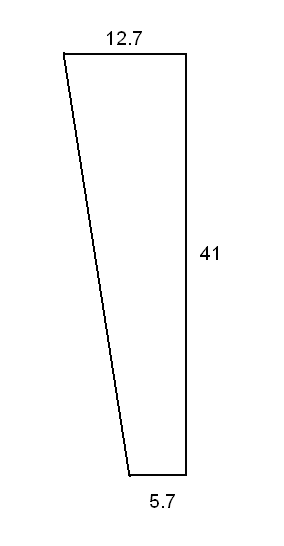

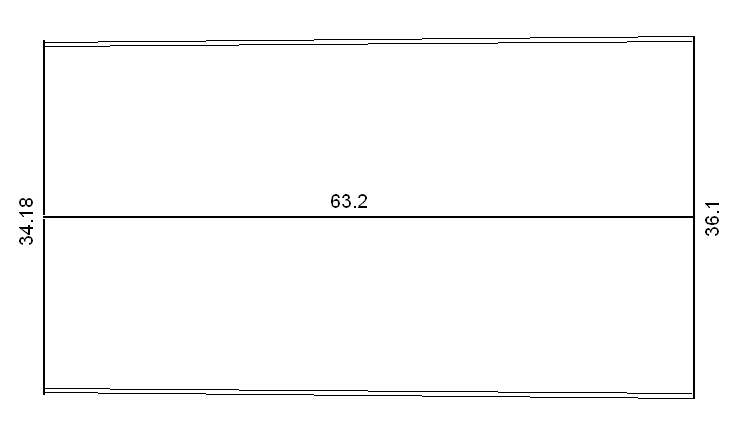

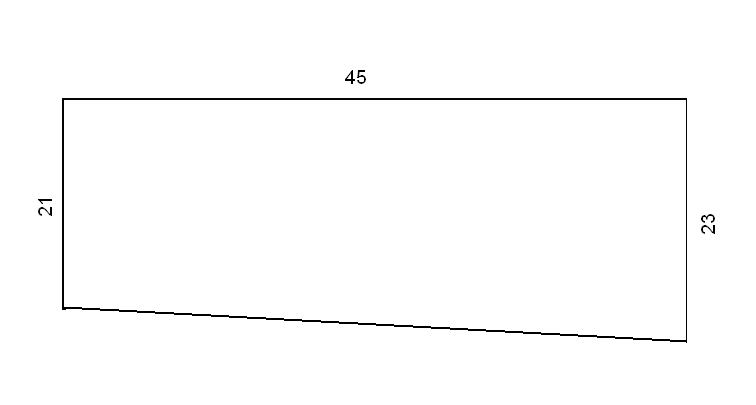

1)     Paredes (Pe�as 7, 8, 9, 10)

As linhas duplas representam chanfros em 45� para encaixe no gabinete

(Pe�a n� 7)

(Pe�a n� 8)

(Pe�a n� 9)

(Pe�a n� 10)

Montagem da  corneta traseira 2

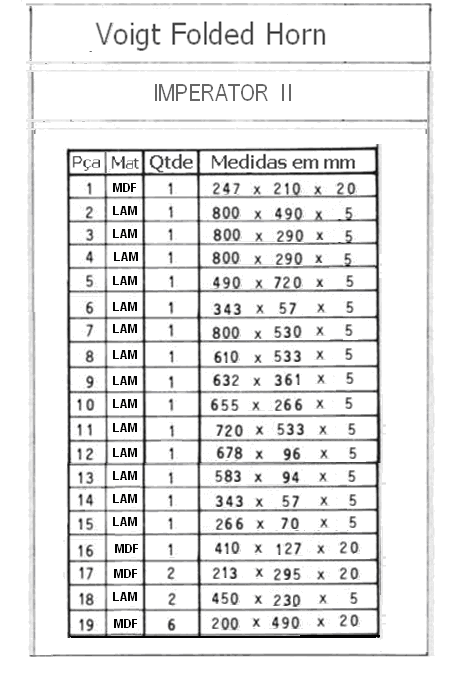

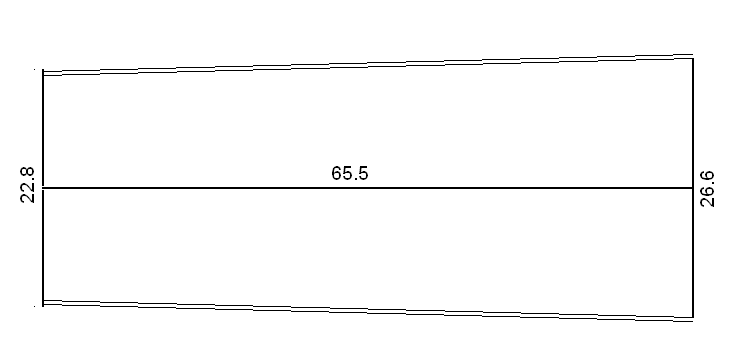

Medidas das pe�as internas.

LAM= Laminado tipo Eucatex biplacado(duas chapas coladas).

MDF= Aglomerado Industrial tipo placa de fibra de madeira de m�dia densidade.

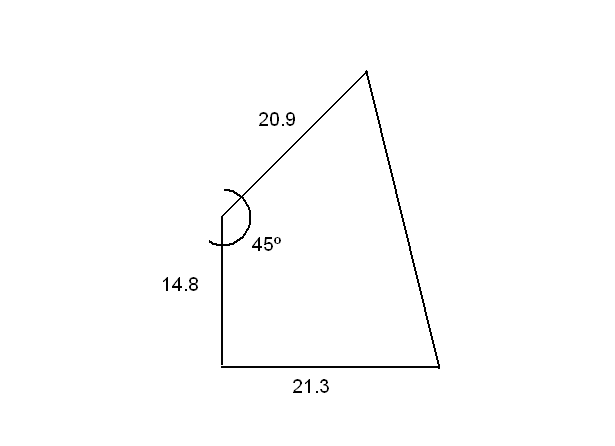

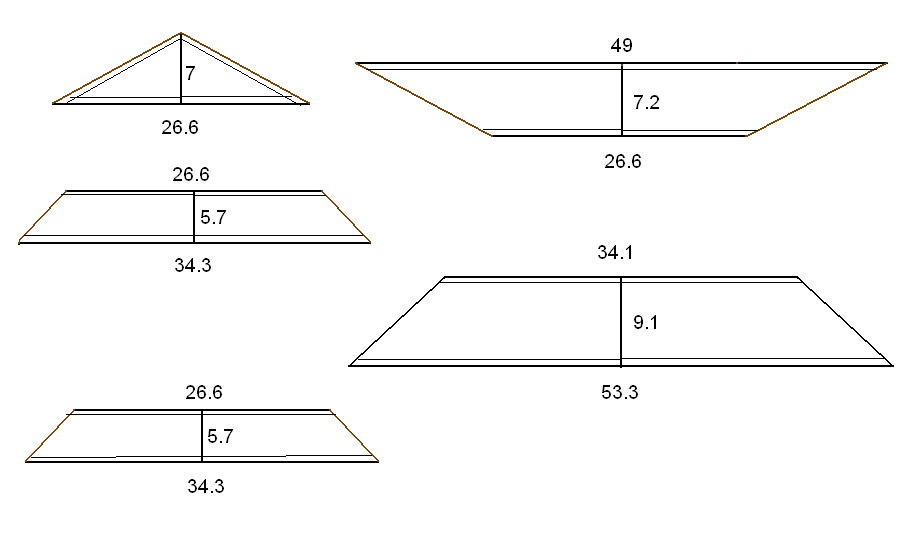

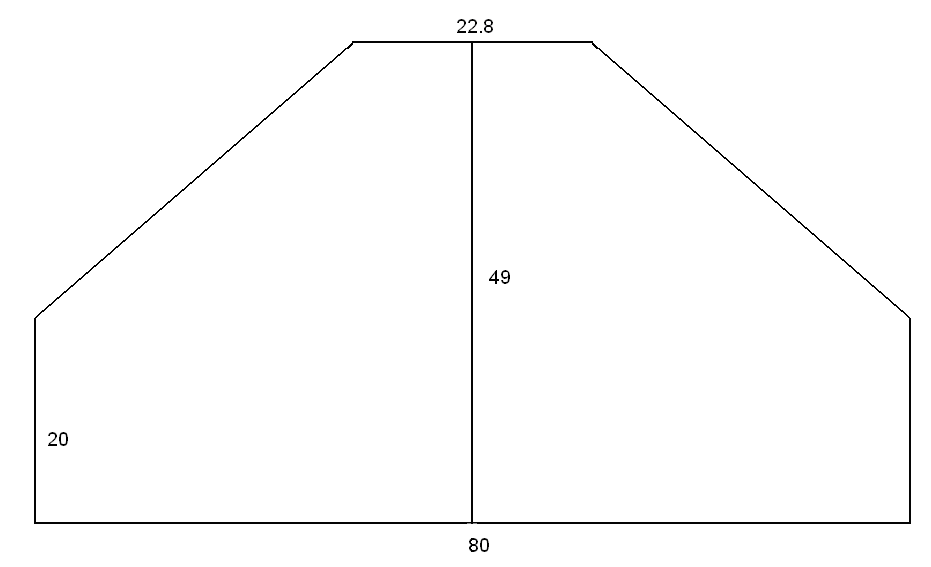

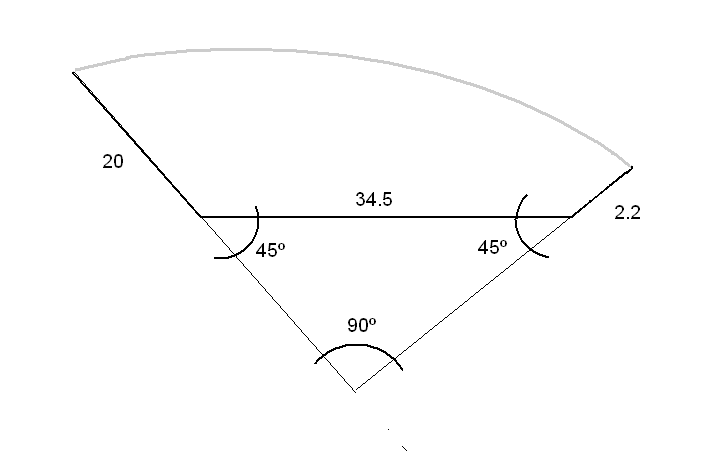

2) Conformadores  (Pe�as 3, 4, 5, 6, 11, 12, 13, 14, 15)

(Pe�as n� 15  n� 14 ; n� 6  n� 5; n� 13)

(Pe�as n� 12 e n� 11)

(Pe�as n� 4 e n� 3)

3 Refor�os (Pe�as 16, 17,19) Espessura= 20mm

Pe�a n� 16  Uma Unidade

Pe�a n� 17  Duas Unidades

Pe�a n� 19  Seis Unidades

4 Defletores (18)

Pe�a n� 18  Duas Unidades

Detalhes sobre o falante original

Full Spectrum loudspeaker Lowther EX4 8 ohms



The latest EX series of drive units will completely transform all existing Lowther Loudspeaker Systems. Every Lowther Owner may now enjoy the greatly superior sound reproduction qualities which only the 'EX' drivers are capable of.
Each model in the 'EX' range incorporates an acoustic chamber precisely tuned for optimum performance. Cone assemblies are pressure balanced between the acoustic chamber at the rear and a phasing equalizer fitted to the front. No unwanted oscillations of the speech coil occur. Only bass frequencies will pass through the acoustic chamber, so avoiding bass/mid-range confusion, often a cause of coloration.

Using the latest method of construction, the inner cone is now isolated from the outer. This is not readily visible, but what is noticeable is that the rim of the inner cone is terminated with a reverse roll. Where once sound frequencies cancelled each other and information was lost, now all that information is retrieved and can be enjoyed. Where once sound frequencies were reinforced by the two cones working in unison at certain frequencies, now there is no over-forward sound reproduced. The frequency range is so smooth, and so much more detail from the recorded source is reproduced, that an entirely new level of listening experience will be enjoyed.
The latest 'state of the art' rare earth magnet technology is employed to enable complete control of the diaphragm throughout the entire audible range. This results in maximum information being extracted from the recorded source whilst delivering a very smooth response at all frequencies.

The 'EX' series Drive Units are the best full range drive units ever produced. They are designed to fit into every Lowther cabinet design, both past and present, without any modification being necessary. These revolutionary drive units are a must for all Lowther owners. Everyone can now enjoy an entirely new experience of listening pleasure.
There are 3 models within the 'EX' range, consisting of the EX2, EX3 and EX4. Each model is the best in its class.

(1) Suitably housed, multi-unit assemblies do not necessarily require passive cross-over systems between bass, mid and high frequency units.
(2) All units are rated at 100 Watts.
(3) We will be happy to answer any questions, (especially those of a technical nature) - either directly from Lowther Loudspeaker Systems in the UK or additionally via your authorised Lowther Club or Distributor if overseas.
(4) We reserve the right to vary the specification and design without prior notification.

Caract�ristiques Lowther EX4 :

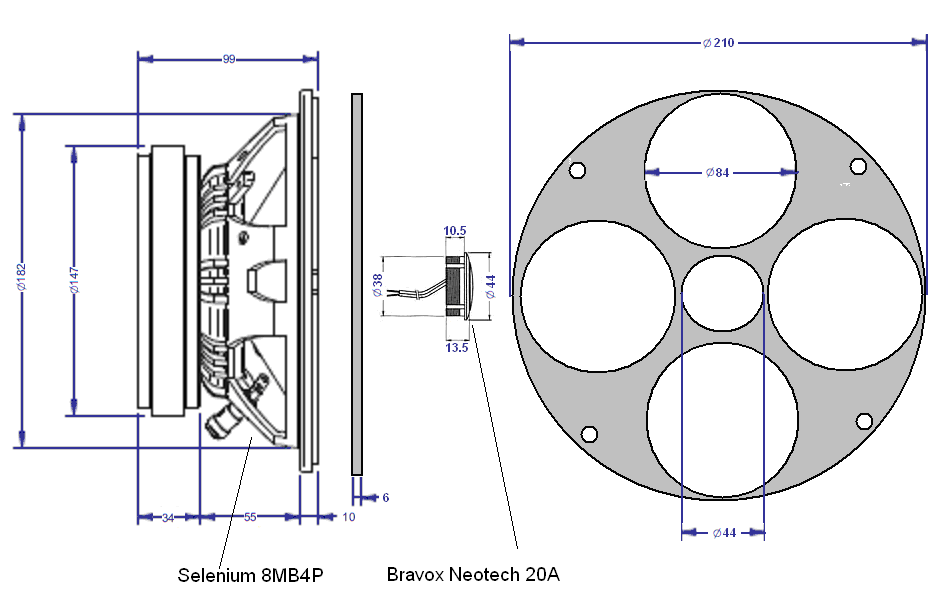

Proposta para adapta��o nacional

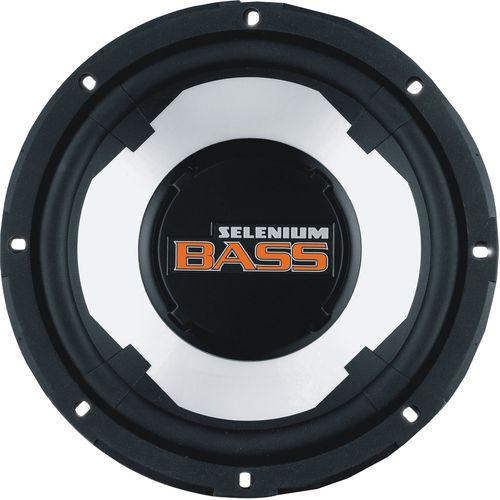

Selenium 8MB4P

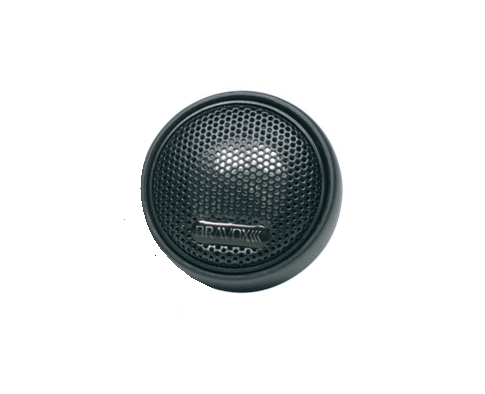

Bravox Neotech 20A

Sugest�o de montagem
