SLR Cameras Zenit / Kiev

Standard Normal Lenses

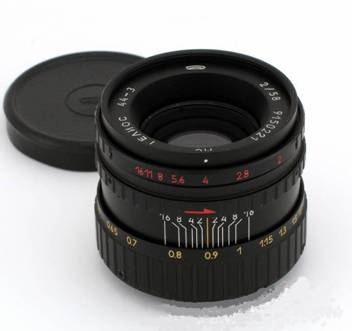

Helios 44 2/58 Lens

Versions:  44-2  and 44-3  pre-set types

44M  and 44M4, M5, M6, M7 . and K4



MC Mir-20M 20mm f/3.5 LensSpecifications:

Focal length, mm:

58

Relative aperture
- minimum:
- maximum:


f/2
f/16

Flange/film distance, mm:

45.5

Angular field of view:

40º

Number of elements:

6

Minimum taking distance, m:

0.5

Mount thread for Attachments:

M49x0.75

Or M52x0.75

Dimensions, (Diameter x Length):

56x56 approx

Weight, kg:

0.25



Helios 44 lenses on all versions are the basis of

Makroplett  and Policomar sets

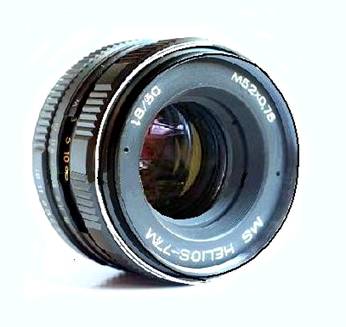

Helios 77M 1.8/50 Lens

Also Helios 77K

Obs. Same mechanical parts os H44 and a new optical cell



Specifications:

Focal length, mm:

50

Relative aperture
- minimum:
- maximum:


f/1.8
f/16

Flange/film distance, mm:

45.5

Angular field of view:

46º

Number of elements:

6

Minimum taking distance, m:

0.5

Mount thread for Attachments:

M52x0.75

Dimensions, (Diameter x Length):

56x56

Weight, kg:

0.25













MC Zenitar M  1.7/50 Lens



MC Mir-20M 20mm f/3.5 LensSpecifications:

Focal length, mm:

50

Relative aperture
- minimum:
- maximum:


f/1.7
f/16

Flange/film distance, mm:

45.5

Angular field of view:

46º

Number of elements:

6

Minimum taking distance, m:

0.5

Mount thread for Attachments:

M52x0.75

Dimensions, (Diameter x Length):

56x56

Weight, kg:

0.25

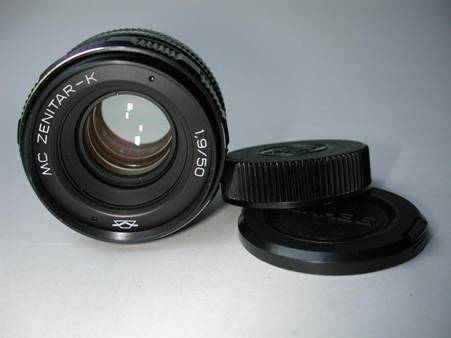

MC Zenitar K  1.9/50 Lens



MC Mir-20M 20mm f/3.5 LensSpecifications:

Focal length, mm:                                      50

Relative aperture
- minimum:                                              f/1.9
- maximum:                                              f/16

Flange/film distance, mm:                       45.5

Angular field of view:                                 46º

Number of elements:                                   6

Minimum taking distance, m:                     0.5

Mount thread for Attachments:         M52x0.75

Dimensions, (Diameter x Length):          56x56

Weight, kg:                                               0.25











MC Zenitar M2m  2/50 Lens

Also MC Zenitar M2k

MC Mir-20M 20mm f/3.5 LensSpecifications:

Focal length, mm:

50

Relative aperture
- minimum:
- maximum:


f/2
f/16

Flange/film distance, mm:

45.5

Angular field of view:

46º

Number of elements:

6

Minimum taking distance, m:

0.33

Mount thread for Attachments:

M46x0.75

Dimensions, (Diameter x Length):

56x49

Weight, kg:

0.18













Industar 50-2  3.5/50 Lens

Only in M42 or M39 mounts

MC Mir-20M 20mm f/3.5 LensSpecifications:

Focal length, mm:

50

Relative aperture
- minimum:
- maximum:


f/3.5
f/16

Flange/film distance, mm:

45.5

Angular field of view:

46º

Number of elements:

4

Minimum taking distance, m:

0.70

Mount thread for Attachments:

M34x0.75   or    M37x0.75

Dimensions, (Diameter x Length):

49x33

Weight, kg:

0.12













MC Helios 81N  2/50 Lens



MC Mir-20M 20mm f/3.5 LensSpecifications:

Focal length, mm:

50

Relative aperture
- minimum:
- maximum:


f/2
f/16

Flange/film distance, mm:

45.5

Angular field of view:

46º

Number of elements:

6

Minimum taking distance, m:

0.5

Mount thread for Attachments:

M52x0.75

Dimensions, (Diameter x Length):

56x56

Weight, kg:

0.25

 See also: Industar 61L/Z Lens at: http://www.novacon.com.br/lenses03.htm
