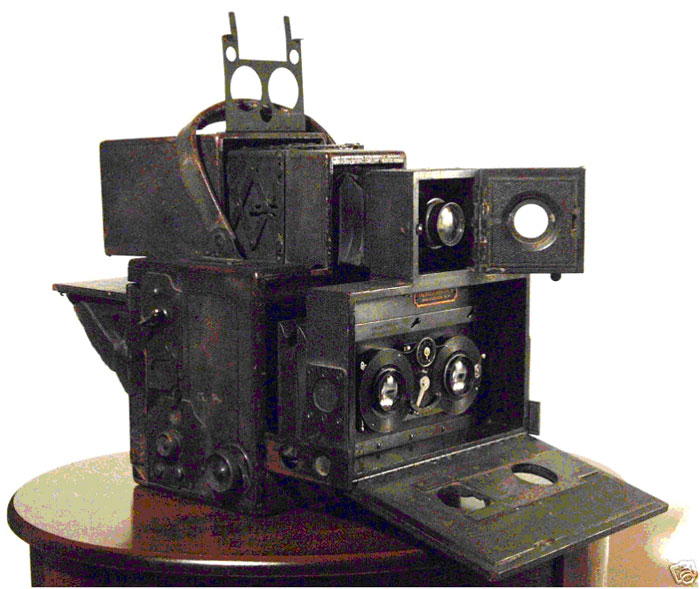

I am sure there must be rarer stereo cameras in the world, but
this surely qualifies as one of the rarest. The Triple Lens Stereo
Graphic was made by Folmer and Schwing from 1902 to 1904, and discontinued when
Folmer was bought out by Kodak. I have
not seen this camera in any book on antique cameras. It is not
listed in McKeown's Camera Price Guide.
Nor can it be found in the George Eastman House collection,
which contains more than 6,000 cameras. The famous Spira Collection did not have one. The only

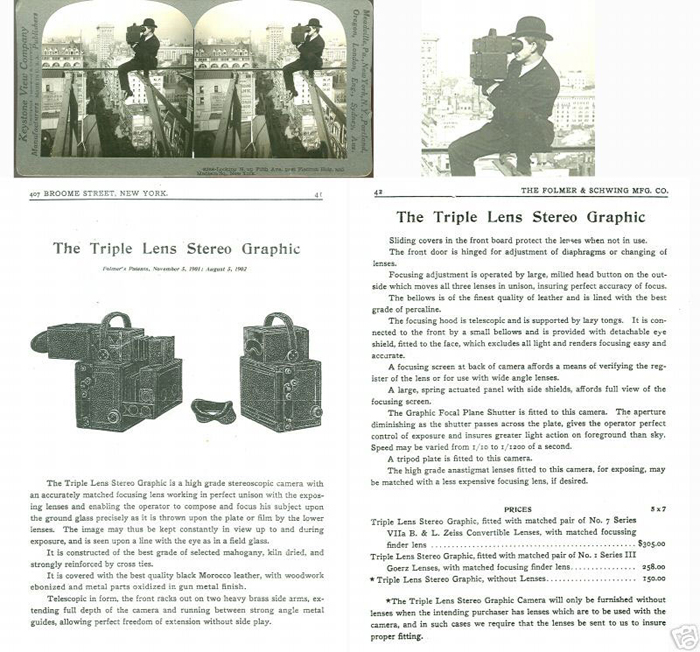

picture I ever saw of this was on the famous stereo card showing that
brave photographer balancing on an I-beam over New York City. He is holding the Triple Lens Stereo
Graphic. (See below) Then, two years ago, a friend bought a French Taxiphote stereo viewer with a collection of glass
slides. Among them was one showing an Edwardian-dressed couple
shooting with a Triple Lens. These are the only photographs of this
camera I have ever seen. Folmer and Schwing featured an engraving of the camera in their
1902 catalogue (see below), along with prices and specifications.

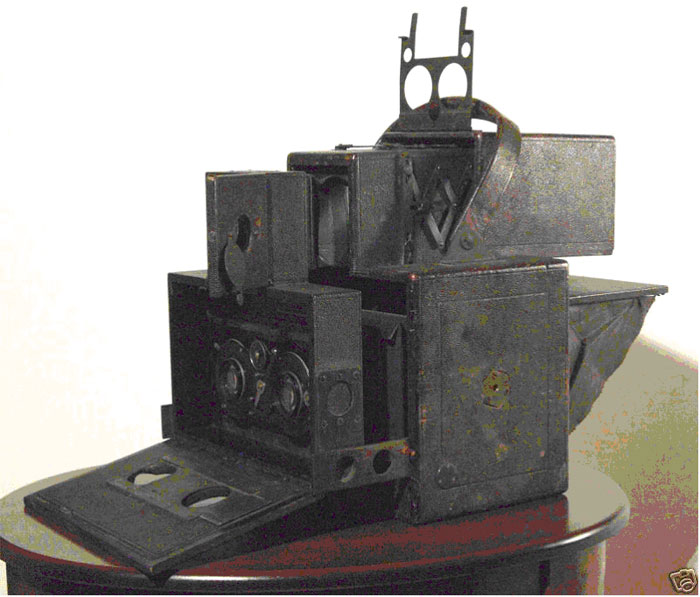

This particular model has a 5x8 format, which was still popular at the
turn of the century. The viewing shade that clipped on the back is
missing, as well as the inner septum. Otherwise everything else is
intact. The focal plane shutter curtain seems to be fine, but the
focal plane shutter itself winds, but does not release. The shutter
in front of the camera is excellent. I had the shutter cleaned and
adjusted by a professional camera repair person very familiar with Graflex and Folmer

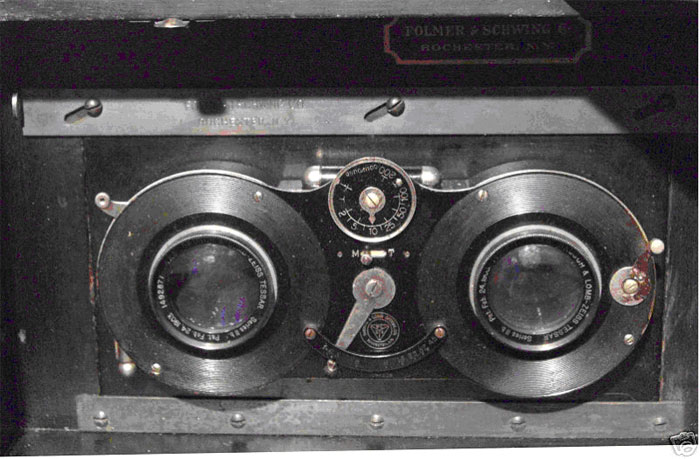

cameras. It is in good working condition. The matched
lenses are Bausch and Lomb Zeiss Tessars Series
ll b, no.'s 1492871 and 1492877. The
lenses are clean, and have no scratches, fungus or
separation. The bellows appear to be free of any holes or
tears. The leather covering is all complete and original, with some
scuffing on the corners and other surfaces. The handle is intact,
and will hold the camera, but there is a crack in the upper surface of
the leather on one side, which doesn't seem to prevent it bearing
weight. I purchased this camera from the family of a late Russian photographer
in the Ukraine (of all places.) The photographer's name was Vladimir Ivanov. I tried to find something about him, as
he was famous in Russia, but I did not have sufficient means to research this.
Perhaps one can better trace out the history of this camera and its

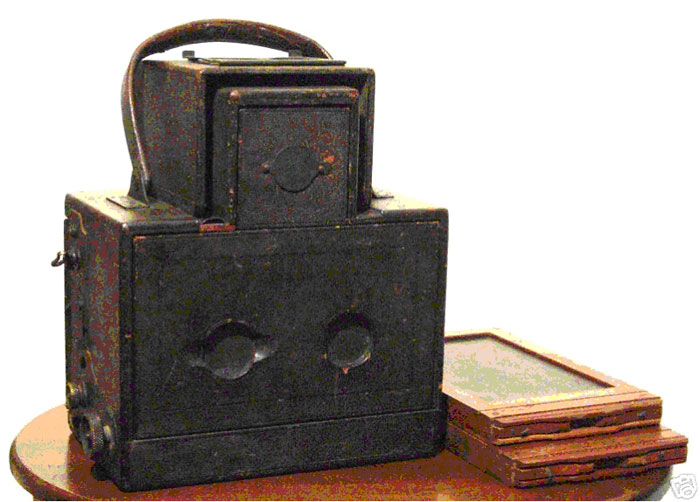

original owner. The camera comes with two 5x8 plate holders in
good condition. The holders themselves, made by Eastman Kodak, are
very unusual in the way they open to receive the plates. Both fit

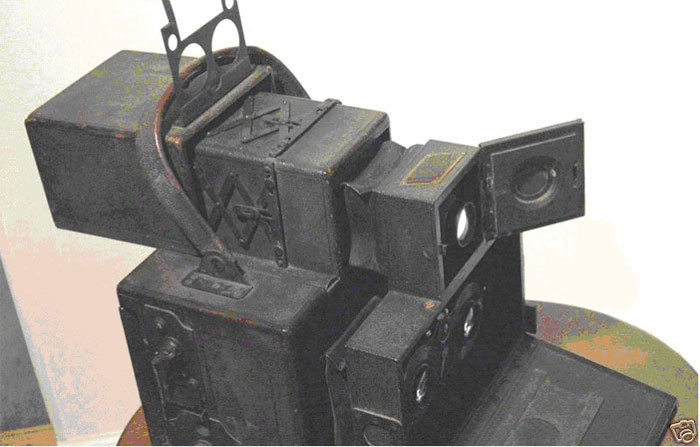

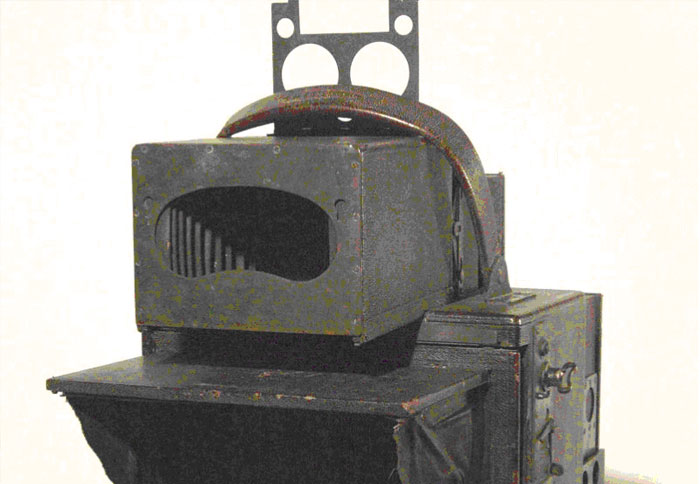

perfectly in the back of the camera. On top, is a strange metal
plate which flips up, and is intended, I
suppose, for lining up your shots without using the focusing hood below

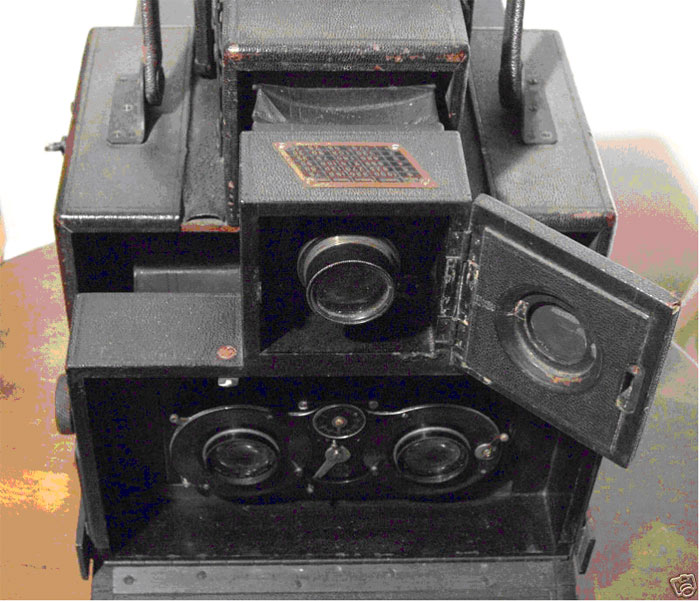

it. The focusing hood has a ground glass plate inside, with a lens
in front that moves with the pair of lenses below it. It has its
own bellows, and is supported by lazy tongs that allow it to slide
backward for individual focusing on the ground glass, making it very easy
to focus the camera and see the image while the shutter is being
fired. There is also a 5x8 ground glass in back with

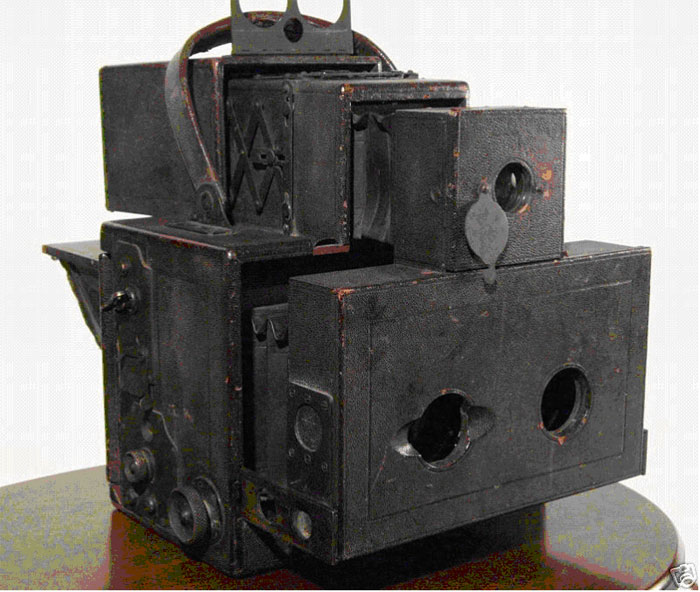

a spring loaded door. The camera is huge. When all the
flaps are open, it measures 19" from front to back, and is a little
over 10" wide, and 15" high to the top of the metal viewer
plate. This is one camera that is not only extremely rare, but has
quite a history behind it. To the best of my knowledge,
I believe this is the only one
in the world. Whoever buys this have a most precious
camera to his collection.
|
