Smena Panoramic Prototype
This camera produced in 1955/56
is small series, was an interesting study of LOMO towards a compact
snapshot travel/panoramic camera.
It was used normally with one lens making
convencional 24X36mm pictures.(right hand one). When you wanted, a
panoramic picture could be taken synchonizing both shutter and lenses in
order to take a single panoramic picture with 115° horizontal coverage

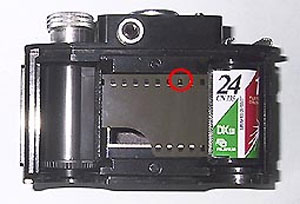

in a single continous larger 24X72mm picture.

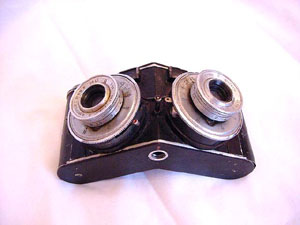

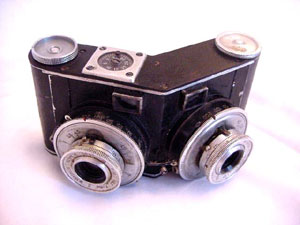

This camera uses all original Smena mechanics, and
lenses in a specially conceived metal body.
T-22 optics f4,5/40mm in focusing mounts. Twin ZT-11
shutters (1/10-1/200+B).

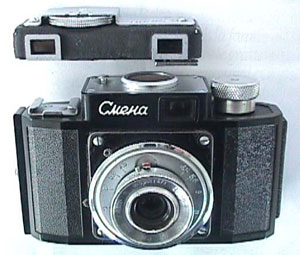

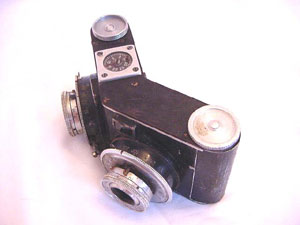

A curious two part divergent V type viewfinder is
built-in where each one has slightly more than half ocular but both are
geminized, so, if one sees through its center, he has the panoramic
sight , in its corner, one sees the conventional single lens coverage.
 |
 |
 |
 |
 |
